Outdoor LED Flexible Display

- Refresh Rate (Hz): ≥3840HZ
- Protection Level: ≥IP65
- View Angle: horizontal > 140±10°, vertical > 130±10°
- Grey Level: ≥4096level
- Life Span: 100000h
- Working Voltage: AC220V/(110V)±15%, 47 - 63HZ
- Signal Transfer: LAN Cable
- Control System: Compuer control system

Outdoor LED Flexible Display: The Versatile Choice for Dynamic Outdoor Visuals

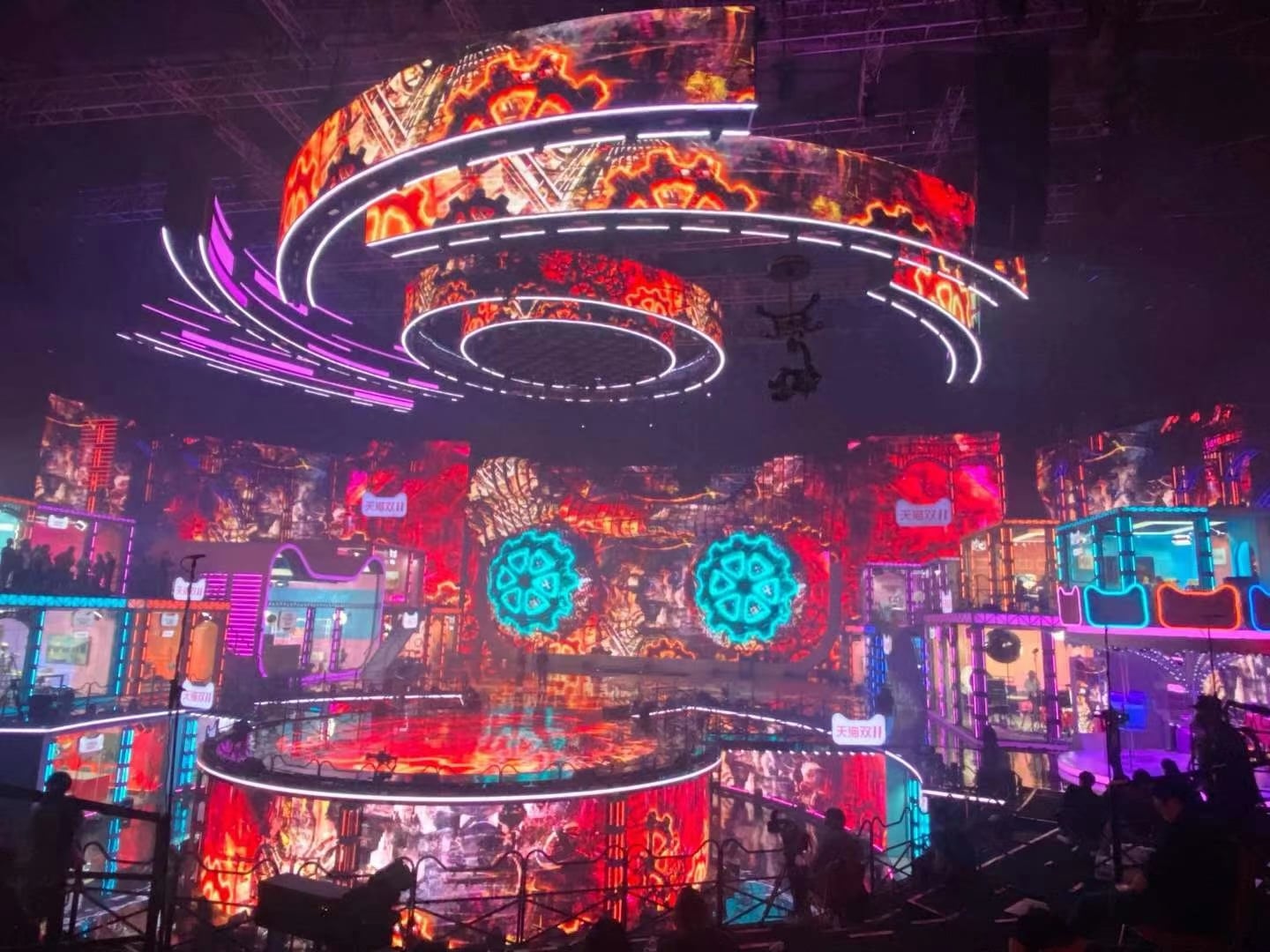

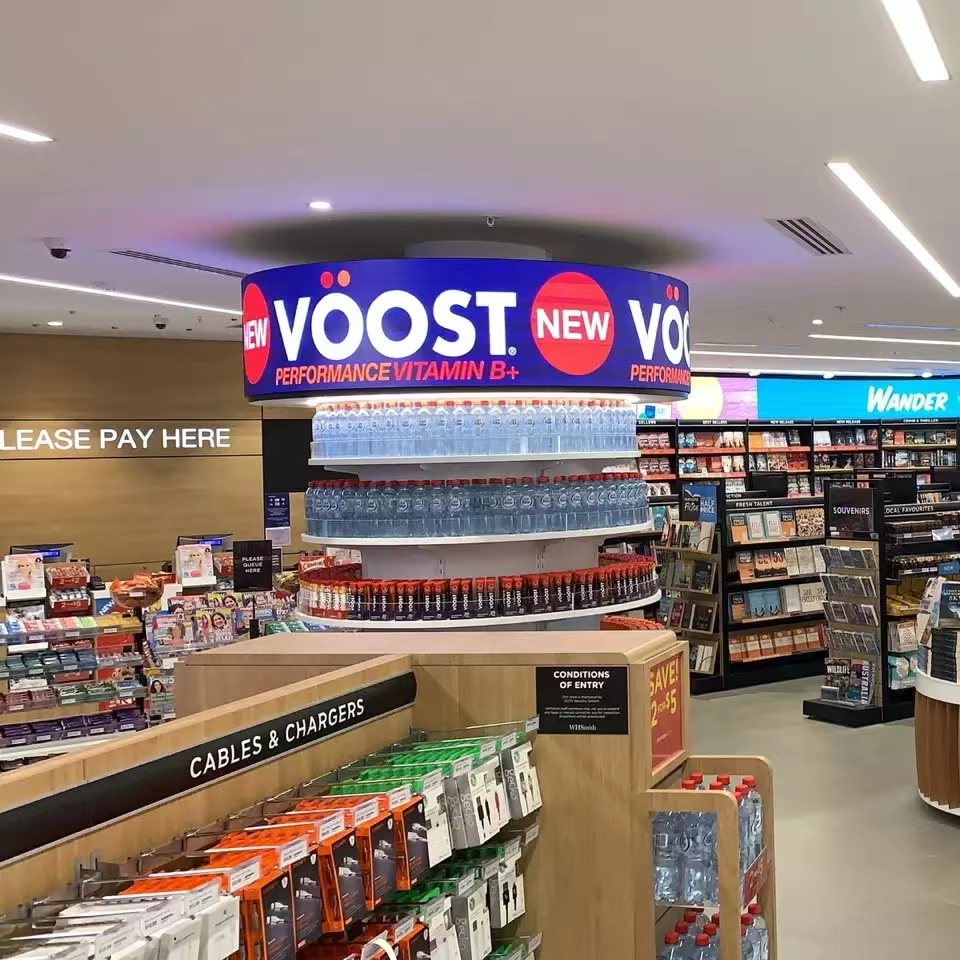

In the ever - evolving outdoor advertising, architectural lighting, and public event sectors, the need for display solutions that can adapt to diverse outdoor environments while delivering top - tier performance is growing rapidly. The Outdoor LED Flexible Display emerges as a revolutionary option, tailor - made to tackle the challenges of outdoor use—from harsh weather conditions to irregular installation surfaces. Unlike rigid outdoor displays, this Outdoor LED Flexible Display combines flexibility with robust functionality, making it perfect for applications such as curved building facades, stage backdrops at open - air concerts, large - scale billboards, and temporary outdoor promotions. Whether facing heavy rain, intense sunlight, or temperature fluctuations, the Outdoor LED Flexible Display maintains stable operation and vivid image output, ensuring that brands and event organizers can convey their messages clearly and impressively to outdoor audiences.


Product Advantages



  1. High Refresh Rate (≥3840Hz) for Smooth and Flicker - Free Visuals
A standout feature of the Outdoor LED Flexible Display is its refresh rate of no less than 3840Hz, a critical parameter for outdoor visual performance. This high refresh rate ensures that the display produces smooth, flicker - free images even when captured by cameras or viewed from a distance—essential for outdoor advertising where passing vehicles and pedestrians need to perceive content clearly. Unlike displays with lower refresh rates that may cause eye strain or distorted visuals in fast - moving scenarios, the Outdoor LED Flexible Display maintains image integrity, whether showcasing dynamic videos, scrolling text, or high - resolution graphics. This advantage makes the Outdoor LED Flexible Display ideal for high - traffic outdoor areas like highways, city squares, and shopping mall exteriors, where visual clarity directly impacts audience engagement.

  1. Superior Protection Level (≥IP65) for All - Weather Durability
Designed to withstand the rigors of outdoor use, the Outdoor LED Flexible Display boasts a protection level of at least IP65. The IP65 rating means the display is fully dustproof and resistant to low - pressure water jets from any direction—effectively shielding it from rain, dust storms, and accidental splashes. This level of protection is far more reliable than lower IP - rated outdoor displays that may malfunction after exposure to moisture or debris. Whether facing heavy downpours in rainy seasons or dusty environments in urban or industrial areas, the Outdoor LED Flexible Display remains operational, eliminating the need for frequent repairs or protective enclosures. This all - weather durability not only extends the display’s lifespan but also reduces maintenance costs, making the Outdoor LED Flexible Display a cost - effective choice for long - term outdoor installations.

  1. Wide View Angle (Horizontal >140±10°, Vertical >130±10°) for Broad Audience Coverage
The Outdoor LED Flexible Display features an expansive view angle, with horizontal viewing reaching over 140±10° and vertical viewing exceeding 130±10°. This wide view angle ensures that content remains visible and color - accurate from almost any position around the display—critical for outdoor settings where audiences may be scattered across large areas. Unlike displays with narrow view angles that force viewers to stand directly in front to see clear content, the Outdoor LED Flexible Display allows pedestrians, drivers, and event attendees to access visuals from the side or above without experiencing color distortion or brightness loss. For example, in a city square installation, the display can effectively reach people walking along adjacent streets, while at an outdoor festival, it ensures those in the back rows still enjoy vivid visuals. This broad audience coverage enhances the Outdoor LED Flexible Display’s effectiveness for advertising and event communication.

  1. High Grey Level (≥4096level) for Vivid and Detailed Image Quality
With a grey level of no less than 4096, the Outdoor LED Flexible Display delivers exceptional image detail and color gradation. The 4096 grey level allows the display to render subtle color transitions, deep blacks, and bright whites, creating lifelike visuals that stand out even in outdoor lighting conditions—from bright sunlight to dim twilight. Unlike displays with lower grey levels that may produce flat, washed - out images, the Outdoor LED Flexible Display can showcase high - contrast content, such as product photos, promotional videos, or artistic visuals, with remarkable clarity. This advantage is particularly valuable for outdoor advertising, where eye - catching visuals are key to attracting audience attention. The high grey level of the Outdoor LED Flexible Display ensures that every detail of the content is presented accurately, making it a top choice for brands aiming to make a strong visual impact.

  1. Long Life Span (100000h) for Sustained Long - Term Use
The Outdoor LED Flexible Display offers an impressive life span of 100000 hours, translating to reliable performance for years of continuous outdoor use. This long lifespan is achieved through high - quality LED chips and durable components that resist wear and tear from prolonged exposure to outdoor elements. Compared to outdoor displays with shorter lifespans that require early replacement—adding to long - term costs—the Outdoor LED Flexible Display provides a sustainable solution for businesses and organizations. For example, a billboard equipped with the Outdoor LED Flexible Display can operate continuously for over a decade (assuming 8 hours of daily use) without needing major component replacements. This longevity not only reduces the total cost of ownership but also minimizes environmental impact by reducing electronic waste, aligning with sustainable business practices.

  1. Stable Working Voltage & Reliable Signal Transfer for Uninterrupted Operation
The Outdoor LED Flexible Display supports a flexible working voltage range of AC220V/(110V)±15% and a frequency of 47 - 63HZ, ensuring stable operation even in areas with fluctuating power supplies—common in many outdoor locations. This voltage flexibility eliminates the risk of display shutdowns due to minor power variations, a crucial advantage for 24/7 outdoor advertising or long - duration events. Additionally, the display uses LAN Cable for signal transfer, which offers faster, more stable data transmission compared to wireless connections. LAN Cable resists interference from external signals (such as radio waves or other electronic devices) and ensures that content is transmitted without delays or disruptions. Combined with the computer control system— which allows for easy content updates, schedule management, and real - time monitoring—these features make the Outdoor LED Flexible Display a reliable, user - friendly solution for uninterrupted outdoor visual operations.


Specifications


Outdoor Led Display Specification
Type Part Number P2 P2.5 P3.076 P4 P5 P6 P8 P10
Pixel Pitch (mm) 2 2.5 3 4 5 6 8 10
LED Standard SMD1211 SMD1415 SMD1415 SMD1921 SMD1921 SMD2727 SMD3535 SMD3535
Module Dimensions (mm) 160*160 320*160 320*160 320*160 320*160 192*192 256*128 320*160
Module Resolution (L*W) 80*80 128*64 104*52 64*32 64*32 32*32 32*16 32*16
Scan Mode 20 16 13 10 8 8 4 2
Minimum Viewing Distance (m) 2 2.5 3 4 5 6 8 10
Brightness (CD/㎡) ≥4000 ≥4000 ≥4000 ≥5000 ≥5500 ≥5500 ≥5500 ≥5500
Cabinet Size (L*W) (mm) 960*960 960*960 960*960 960*960 960*960 960*960 1024*768 960*960
Cabinet Material Iron Iron Iron Iron Iron Iron Iron Iron
Cabinet Weight 30kg/㎡ 30kg/㎡ 30kg/㎡ 30kg/㎡ 30kg/㎡ 30kg/㎡ 30kg/㎡ 30kg/㎡
Max Power Consumption 1000w/㎡ 1000w/㎡ 1000w/㎡ 1000w/㎡ 1000w/㎡ 1000w/㎡ 900w/㎡ 800w/㎡
Average Power Consumption 350w/㎡ 350w/㎡ 350w/㎡ 350w/㎡ 350w/㎡ 350w/㎡ 300w/㎡ 240w/㎡
Refresh Rate (Hz) 1920HZ, 3840HZ optional
Protection Level ≥IP65
View Angle 120°
Grey Level ≥4096 level
Life Span 100000 h
Working Voltage AC220V/(110V)±15%, 47 - 63HZ
Signal Transfer  LAN Cable
Control System Compuer Control System

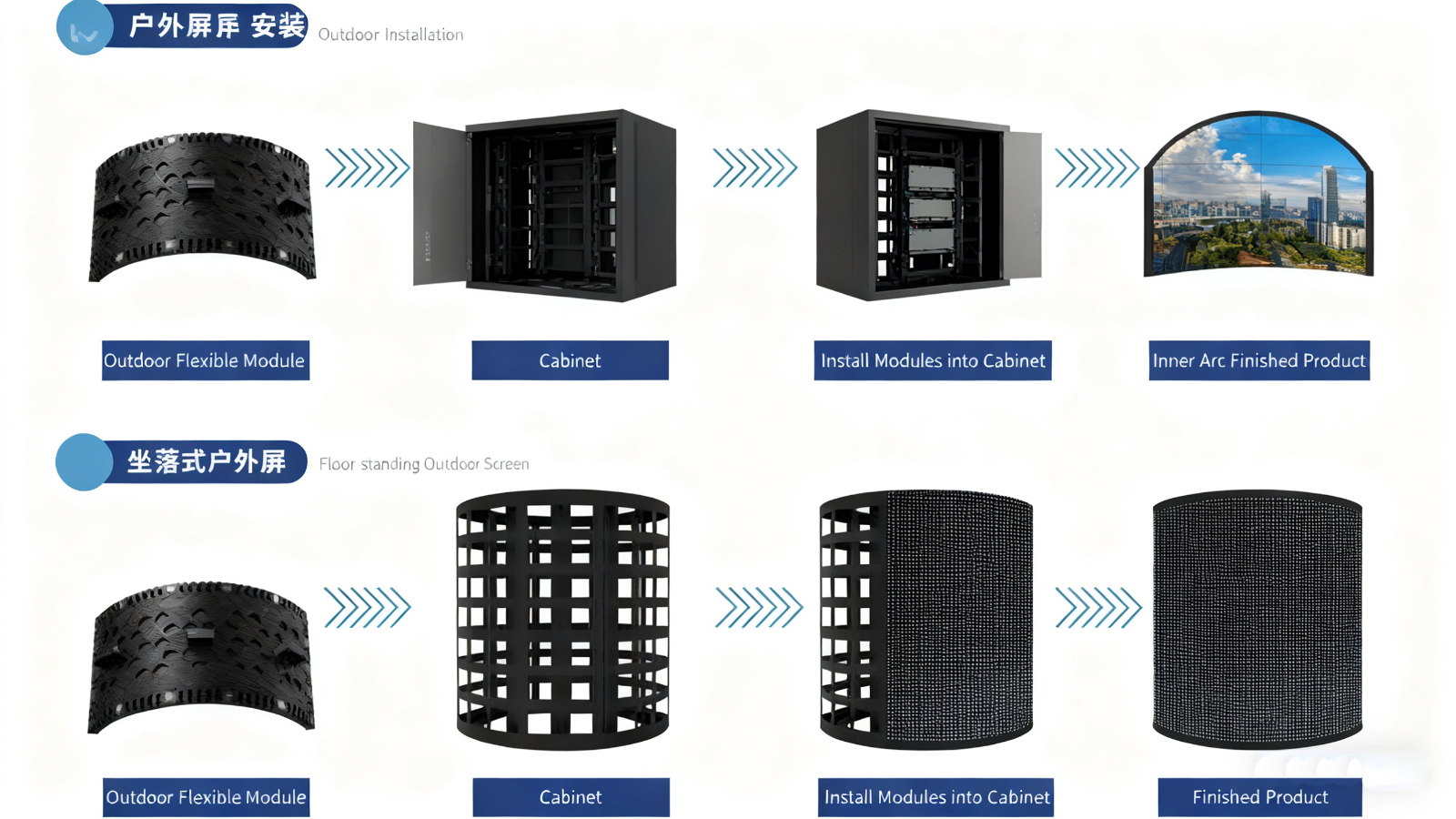

Outdoor LED Flexible Display supplierrmg-Outdoor LED Flexible Display.jpg

Technical Parameters


Part Number P2.5 P3.076 P4 P5
Pixel Pitch (mm) 2.5mm 3.076mm 4mm 5mm
LED Standard SMD1415 SMD1415 SMD1921 SMD1921
Module Dimensions (mm) 320*160 320*160 320*160 320*160
Module Resolution (L*W) 128*64 104*52 80*40 64*32
Scan Mode 16 13 10 8
Minimum Viewing Distance (m) 2.5 3 4 5
Brightness (CD/) 5000CD/ 5000CD/ 5000CD/ 5000CD/
Max Power Consumption 585w/ 610w/ 650w/ 410w/
Average Power Consumption 300w/ 300w/ 320w/ 200w/
Refresh Rate (Hz) ≥3840HZ
Protection Level ≥IP65
View Angle horizontal > 140±10°, vertical > 130±10°
Grey Level ≥4096level
Life Span 100000h
Working Voltage AC220V/(110V)±15%, 47 - 63HZ
Signal Transfer LAN Cable
Control System Compuer control system


Product Packaging

1b4247adf1430b0627ac0fae3777d9d0.jpg58debd2a8054d30d2856cf2c06d561ca.jpge1c1f21a474d6fdfa15b1d942e9cc1ae.jpg

cartonThe wooden case Flight case
