RMGLED presents a diverse range of flexible LED displays that can be customized into various distinctive shapes, like beer bottles, coke cans, trapezoids, cylinders, and so on, catering to your creative design concepts. Our flexible LED screens are crafted specifically for creative display applications, aiming to assist you in achieving unique visual impacts.
The flexible LED screen represents a remarkable breakthrough in display technology. It brings novel experiences to numerous application scenarios with outstanding visual effects and boundless creative potential. Whether in educational settings, exhibition halls, or event venues, its applications are as versatile and adaptable as the screens themselves. RMGLED's flexible LED screen is perfect for transcending the boundaries of visual communication. This article will guide you through a comprehensive exploration of the characteristics, advantages, and applications of the flexible LED screen, helping you unlock more innovative visual and creative experiences!
1.What is a Flexible LED Screen?
A flexible LED display, also known as an LED flex screen or soft LED screen, is a digital LED display capable of being bent. It employs a flexible substrate along with special packaging techniques, enabling it to be flexible and adaptable while still maintaining high brightness and high-definition display quality.
The key distinction from ordinary LED screens is that LED flexible screens can effortlessly adapt to curved walls, cylindrical display cabinets, and even wavy stage setups. Nowadays, when you enter a large shopping mall, you'll notice those interactive advertising curved screens, and at concerts, the flowing LED curved background walls – many of these utilize this advanced technology.
It's worth noting that new technologies often come with challenges. Due to the necessity for customized production, the current cost is approximately 30% - 50% higher than that of conventional LED screens. Moreover, the splicing and connection technology for flexible LED displays needs further refinement. However, with the expansion of large-scale production, it's anticipated that the price will gradually become more affordable within the next two years.
From an industry trends perspective, LED flexible displays are breaking free from the limitations of traditional flat surfaces. Designers are starting to utilize them to create innovative flexible LED screen designs, suggesting that future urban spaces could transform into truly "living" digital canvases.
2.Features of the Flexible LED Screen
The unique strengths of flexible LED display screens have made them highly favored in fields such as commercial display, stage art, and creative exhibitions, opening up a new dimension for digital visual presentation. Compared to the rigid nature of traditional LEDs, it can readily handle various special-shaped structures, demonstrating stronger adaptability and creativity. Here are its main features:

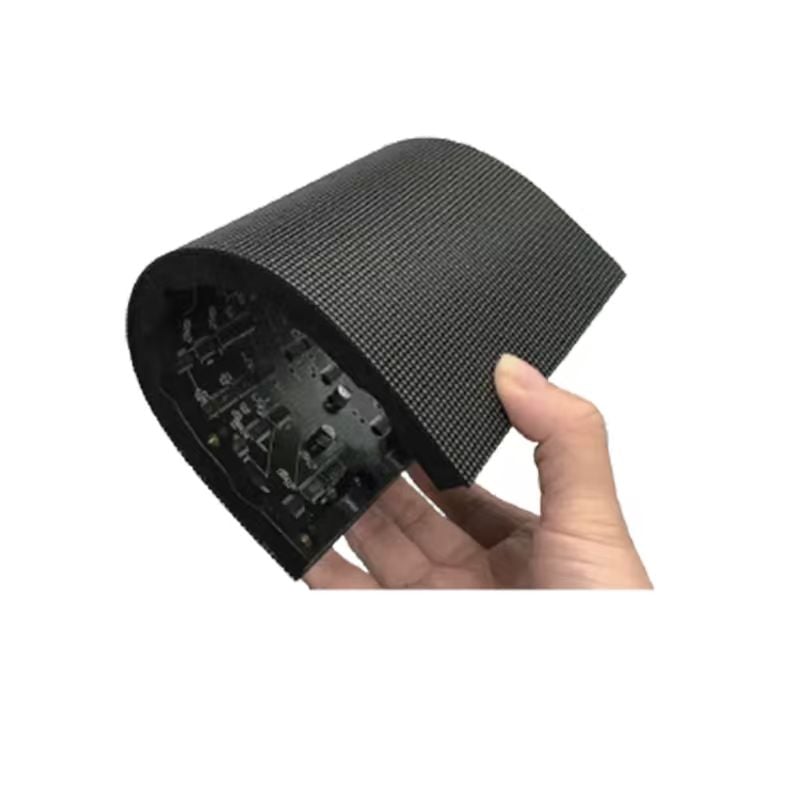

2.1 Soft and Bendable
The RMGLED flexible LED screen utilizes a flexible substrate, which endows it with flexibility and resistance to stretching. Unlike traditional LED screens that are restricted to flat or fixed curved surfaces, flexible LED displays can be easily bent and are suitable for complex structures like arcs, cylinders, and even spirals, thus providing a broader scope for creative displays.
2.2 Ultra-thin and Ultra-light
The flexible LED signage incorporates lightweight materials and a highly integrated design, resulting in an overall structure that is thinner and lighter than traditional LED displays. Its significantly reduced weight facilitates transportation and installation. Additionally, the thin and light design also contributes to lower energy consumption, making it more energy-efficient and environmentally friendly.
2.3 Perfect Flatness
The RMGLED flexible LED display screen can maintain high-quality picture display effects even when bent. Its flexible material and precise manufacturing process ensure that there are no noticeable gaps or bumps on the screen surface. Even when multiple flexible LED modules are spliced together, it can achieve seamless connections and preserve the integrity of the image.
2.4 Easy to Install and Maintain
The flexible LED screen is typically installed via magnetic suction, eliminating the need for complicated screw fixation and greatly enhancing construction efficiency. Given that the flexible LED display signage adopts a modular design, maintenance becomes more convenient. A single damaged unit can be swiftly replaced without having to replace the entire screen, thereby reducing maintenance costs and time.
3.Common Shapes of the Flexible LED Screen
Flexible LED screens, with their remarkable plasticity and flexibility, have overcome the shape limitations of traditional LED display screens and can adapt to a variety of special structures to fulfill the creative display requirements of different scenes. The following are several common shapes of flexible LED display screens:

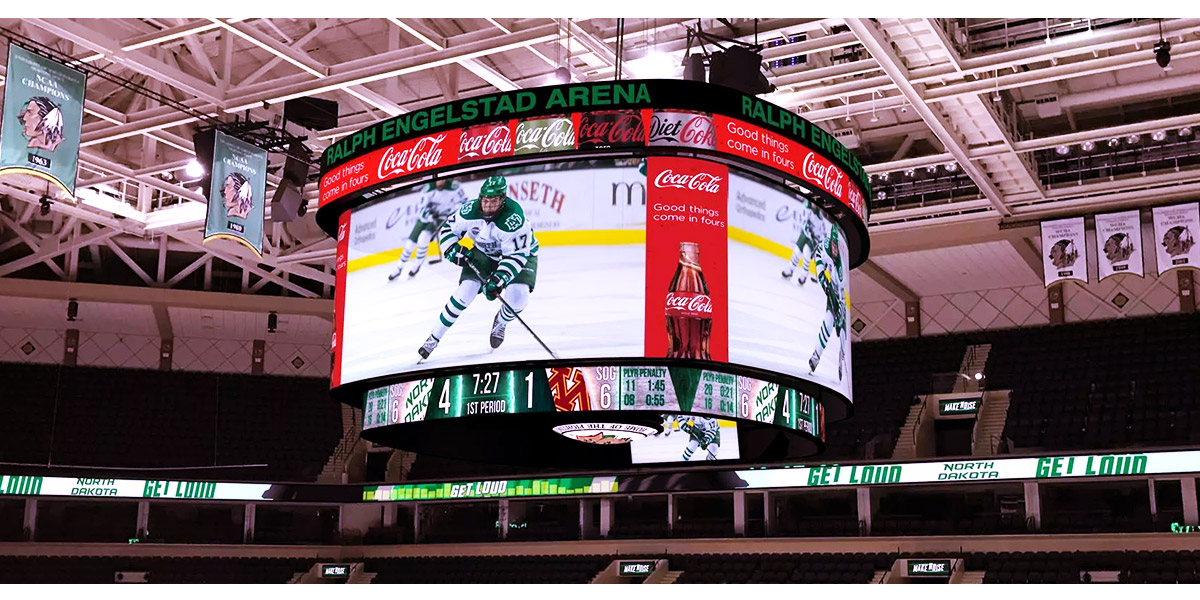

3.1 Cylindrical LED Display
When combined with the flexible LED, the load-bearing columns of a building can be transformed into digital art installations. These 360° surround screens can wrap around the column like a film, creating an immersive shopping guide system in the atrium of a shopping mall or enabling the holographic display of cultural relics in a museum. No matter from which angle a pedestrian stops, they can view seamless dynamic images.

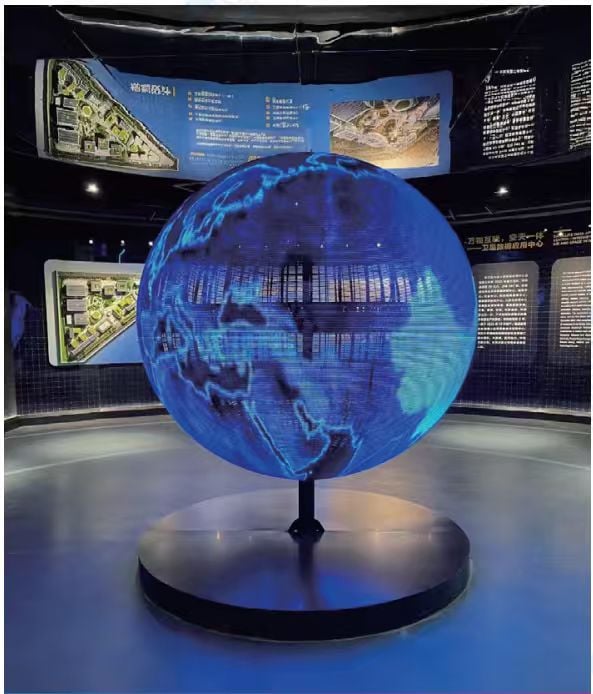

3.2 Spherical LED Display
The spherical screen formed by splicing flexible modules breaks the dimensional constraints of flat displays. The suspended "digital earth" in a science and technology museum can present real-time weather changes, and the rotating colorful light ball in a bar can move in sync with the music. Spherical LED screens can also be used in urban landmark buildings to add a touch of technology and beauty to the nightscape.

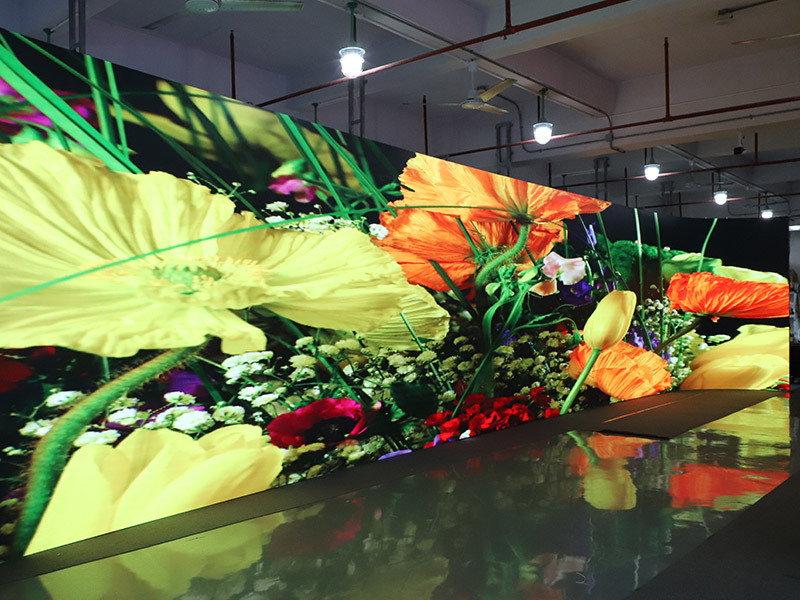

3.3 Curved LED Display
The curved LED display takes advantage of the bending properties of flexible LED modules to create a smooth curved display effect. Compared to traditional flat screens, curved LED screens offer a wider viewing angle while minimizing image distortion, resulting in a more natural viewing experience. This type of LED screen is widely employed in settings such as stage backgrounds, gymnasiums, and conference centers.
3.4 Ribbon LED Display
The ribbon LED display is frequently utilized for creative decoration, building facades, shopping mall atriums, and stage art design. Its unique feature is that it can bend like a ribbon to produce a distinct visual effect. The ribbon LED screen can adapt to various complex installation environments and support multiple installation methods such as hanging, bending, and wrapping.

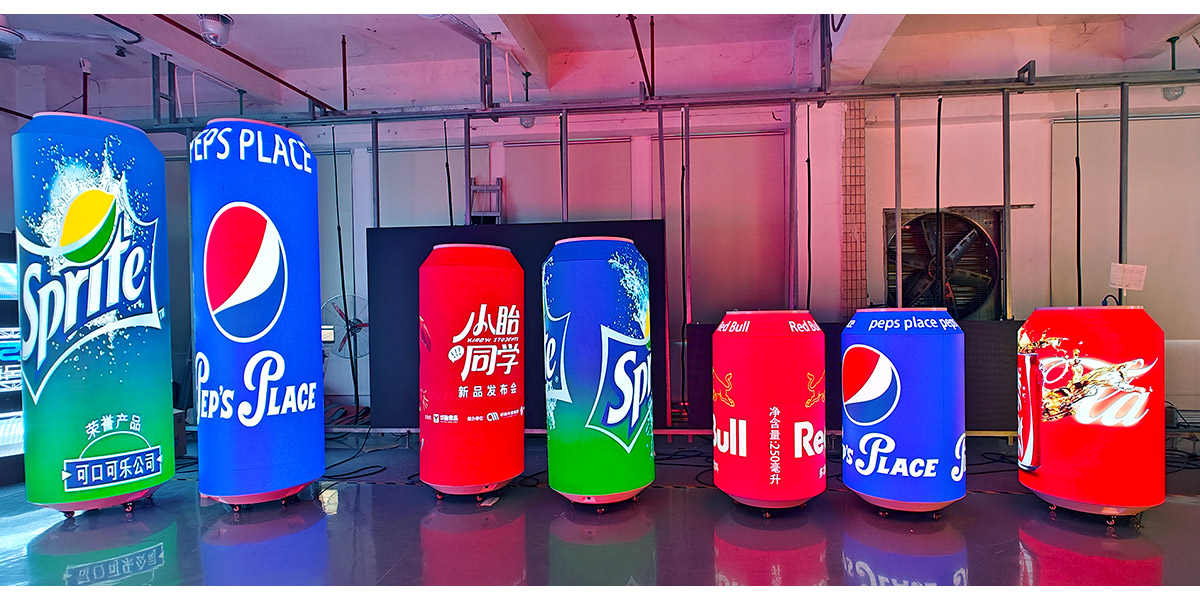

3.5 Can-shaped LED Display
Transforming the display into a can shape? Flexible LED makes this creative idea a captivating visual element. The can LED display has a unique shape and supports 360° high-definition display. It is suitable for locations like shopping malls, exhibitions, bars, etc., and is particularly useful for marketing and promotion in the beverage industry.
4.Advantages of the Flexible LED Screen
If you're contemplating purchasing a flexible LED screen but are unsure whether it's the best option, you might want to consider the following core advantages:
4.1 Creative Display, Breaking Through Tradition
Flexible LED screens shatter the constraints of traditional flat displays and can effortlessly adapt to various irregular shapes. They are widely used in commercial advertisements, stage performances, exhibitions, and other scenarios to generate unique visual effects and enhance the appeal of the content.
4.2 Magnetic Design, Convenient Installation
In contrast to traditional LED screens that require complex brackets and screws for fixation, flexible LED screens utilize magnetic installation methods, allowing them to be quickly attached to metal structures. This significantly reduces construction time and simplifies the installation process.
4.3 High-definition Display, Seamless Connection
Flexible LED screens incorporate advanced LED display technology, featuring high resolution, high brightness, and high contrast. Even when bent, they can maintain a seamless spliced picture effect, making the displayed content smoother and more natural.
4.4 Customizable Shape
You can adjust the size, shape, and pixel pitch of the flexible LED screen according to different application requirements. LED display screens offer a high level of customization and are suitable for special structures like arcs, cylinders, and waves, meeting personalized installation needs.
5.Recommended Flexible LED Screen
This section recommends flexible LED modules to you, enabling you to obtain the latest product information.

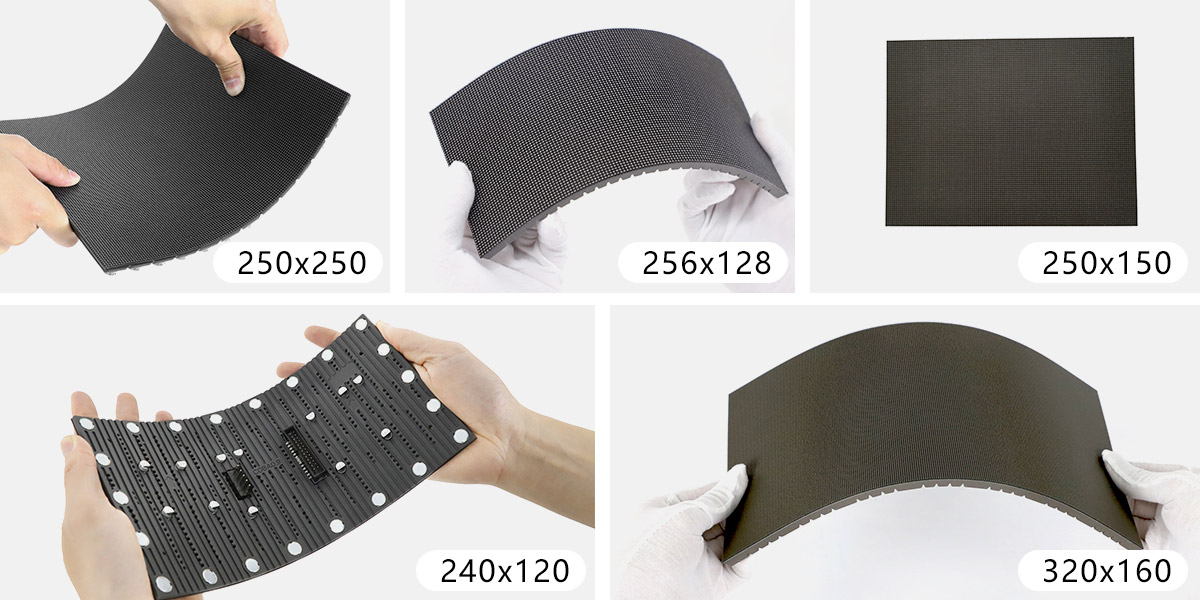

5.1 RMGLED Flexible LED Display
The RMGLED flexible LED modules are ideal for indoor high-resolution LED displays. RMGLED offers flexible LED modules in a variety of specifications, applicable to nearly all common applications. These include series such as 240mm × 120mm, 256mm × 128mm, 320mm × 160mm, 250mm × 250mm, 300mm × 168.75mm, etc. The supported pixel pitch ranges cover P0.9, P1.25, P1.56, P1.875, P2, P2.5, P3, P4, P5, etc., fulfilling different display requirements.
5.2 RMGLED Flexible LED Screen Modeling Video
5.3 RMGLED Flexible LED Module Parameters
320x160mm
Model
Pixel Pitch
LED Type
Module Size（MM）
Module Resolution
Driving Mode
Refresh Rate(Hz)
Brightness(Nits)
P1.25-i64S-1010-320x160SF
P1.25mm
SMD1010
320*160
256*128
1/64
3840
600
P1.29-i62S-1010-320x160SF
P1.29mm
SMD1010
320*160
248*124
1/62
3840
600
P1.53-i52S-1212-320x160SF
P1.53mm
SMD1212
320*160
208*104
1/52
3840
600
P1.56-i51S-1212-320x160SF
P1.56mm
SMD1212
320*160
204*102
1/51
3840
600
P1.86-i43S-1212-320x160SF
P1.86mm
SMD1212
320*160
172*86
1/43
3840
600
P2-i40S-1515-320x160SF
P2.mm
SMD1515
320*160
160*80
1/40
3840
650
P2.5-i32S-1515-320x160SF
P2.5mm
SMD1515
320*160
128*64
1/32
3840
700
P3.076-i26S-2020-320x160SF
P3.076mm
SMD2020
320*160
104*52
1/26
3840
700
P4-i20S-2020-320x160SF
P4mm
SMD2020
320*160
80*40
1/20
3840
600
P5-i16S-2020-320x160SF
P5mm
SMD2020
320*160
64*32
1/16
3840
600
240x120mm
Model
Pixel Pitch
LED Type
Module Size（MM）
Module Resolution
Driving Mode
Refresh Rate(Hz)
Brightness(Nits)
P0.9-i64S-COB-240x120SF
P0.9mm
COB
240*120
256*128
1/64
3840
800
P0.9-i64S-M09-240x120SF
P0.9mm
IMD-M09
240*120
256*128
1/64
3840
650
P1.25-i48S-1010-240x120SF
P1.25mm
SMD1010
240*120
192*96
1/48
3840
650
P1.579-i38S-1212-240x120SF
P1.579mm
SMD1212
240*120
152*76
1/38
3840
700
P1.875-i32S-1515-240x120SF
P1.875mm
SMD1515
240*120
128*64
1/32
3840
700
P2-i30S-1515-240x120SF
P2.mm
SMD1515
240*120
120*60
1/30
3840
700
P2.5-i24S-1515-240x120SF
P2.5mm
SMD1515
240*120
96*48
1/24
3840
700
P3-i20S-2020-240x120SF
P3mm
SMD2020
240*120
80*40
1/20
3840
650
P4-i15S-2020-240x120SF
P4mm
SMD2020
240*120
60*30
1/15
3840
650
250x250mm
Model
Pixel Pitch
LED Type
Module Size（MM）
Module Resolution
Driving Mode
Refresh Rate(Hz)
Brightness(Nits)
P1.56-i40S-1212-250x250SF
P1.56mm
SMD1212
250*250
160*160
1/40
3840
600
P1.95-i32S-1515-250x250SF
P1.95mm
SMD1515
250*250
128*128
1/32
3840
700
P2.6-i32S-1515-250x250SF
P2.6mm
SMD1515
250*250
96*96
1/32
3840
700
300x168.75mm
Model
Pixel Pitch
LED Type
Module Size（MM）
Module Resolution
Driving Mode
Refresh Rate(Hz)
Brightness(Nits)
P1.2-i45S-1010-300x168.75SF
P1.2mm
SMD1010
300*168.75
240*135
1/45
3840
600
P1.5-i54S-1212-300x168.75SF
P1.5mm
SMD1212
300*168.75
192*108
1/54
3840
600
P1.8-i45S-1515-300x168.75SF
P1.8mm
SMD1515
300*168.75
160*90
1/45
3840
700
P2.3-i36S-1515-300x168.75SF
P2.3mm
SMD1515
300*168.75
128*72
1/36
3840
700
Other Size
Model
Pixel Pitch
LED Type
Module Size（MM）
Module Resolution
Driving Mode
Refresh Rate(Hz)
Brightness(Nits)
P1.56-i48S-1212-250x150SF
P1.56
SMD1212
200*150
128*96
1/48
3840
700
P2-i32S-1515-256x128SF
P2mm
SMD1515
256*128
128*64
1/32
3840
800
P4-i16S-2020-256x128SF
P4mm
SMD2020
256*128
64*32
1/16
3840
700
6.Flexible LED Display Applications
6.1 Stage Performances
Flexible LED screens can create a diverse range of stage effects in stage performances and large-scale events. For instance, curved background walls and wraparound skylights can be constructed to offer a more immersive visual experience. In stage performances like concerts and variety shows, flexible LED signage has become an essential and innovative display device.
6.2 Exhibitions
In exhibitions and trade fairs, flexible LED display screens are widely utilized in settings such as corporate exhibition halls, technology exhibitions, and brand conferences. Flexible LED video walls can conform to various special-shaped booths, including curved walls, columns, arches, etc., making the exhibition design more novel and distinctive. Many high-end exhibition halls also employ flexible LED screens to create immersive exhibition spaces, enabling visitors to have a deeper experience within a visually stunning environment.
6.3 Shopping Malls
Flexible LED display screens are being used more and more frequently in shopping malls and shopping centers, primarily for advertising, brand promotion, and interactive experiences. Given the numerous curved walls, columns, and ceilings typically found inside shopping malls, traditional LED display screens struggle to fit in, whereas flexible LED screens can readily adapt to these complex structures.
6.4 Stadiums
If you've noticed, you'll find that many stadiums have flexible LED screens installed above the center to achieve 360° surround information display. Whether it's live scores, exciting replays, or advertising, flexible LED screens can present high-definition and smooth images, enhancing the audience's immersive viewing experience.
6.5 Architectural Decoration
In the lobbies of high-end hotels, flexible LED screens can be used to create skylight display systems. In commercial districts, flexible LED screens can be wrapped around columns or walls. Flexible LED display screens blend seamlessly with architectural structures and are widely employed in hotels, commercial complexes, landmark buildings, etc.
7.Why Choose RMGLED as Your Flexible LED Screen Manufacturer?
As a leading manufacturer in the field of transparent LED screens, RMGLED's transparent LED displays are continuously developed, upgraded, and optimized. Our products offer high transparency, ease of operation, high refresh rates, energy efficiency, and more. There are several significant reasons for choosing RMGLED as your flexible LED screen manufacturer:
7.1 Professional Technology and Innovative Design
RMGLED has been deeply involved in the LED display technology sector for many years, focusing on the innovation and optimization of flexible LED displays. RMGLED flexible LED displays support seamless splicing, ensuring a complete and smooth picture, and providing customers with an outstanding visual experience.
7.2 Strict Quality Control, Stable and Durable
RMGLED rigorously adheres to high-standard production processes. Each flexible LED display undergoes strict testing in aspects such as brightness, color consistency, refresh rate, durability, and shock resistance, etc., to guarantee that the product is stable, reliable, and durable.
7.3 Diversified Application Scenarios
RMGLED flexible LED displays are widely used in a variety of innovative scenarios, including stage backgrounds, exhibitions, shopping centers, architectural decoration, sports events, etc., and can offer professional solutions based on personalized needs.
7.4 Customized Solutions
RMGLED has a professional technical support team that provides global customers with full-process services, ranging from product selection, installation guidance, to after-sales maintenance. Relying on a complete supply chain and an efficient logistics system, RMGLED can promptly respond to market demands and ensure the timely delivery of products.
Choosing RMGLED as your flexible LED screen manufacturer ensures that you'll receive a high-quality, innovative, and reliable product while enjoying professional service and support.
8.Frequently Asked Questions about Flexible LED Screens
8.1 Is the Flexible LED Screen More Expensive than the Ordinary LED Display?
Yes, the price of the flexible LED screen is generally higher than that of ordinary LED displays. This is mainly because it employs special flexible substrate materials and combines advanced packaging processes to enable it to bend, resulting in relatively higher production costs.
8.2 What is the Price of the Flexible LED Screen?
The price of the flexible LED screen is influenced by numerous factors, including brand, model, resolution, pixel pitch (such as P2.5, P3, P4, etc.), screen size, and customization requirements. For specific prices, please contact us to obtain an accurate quotation based on your actual needs.
8.3 To What Extent Can Flexible LED Displays be Bent?
The bending degree of the flexible LED screen depends on its substrate material and design process. Generally speaking, the minimum bending radius of flexible LED screens can reach 10 - 15 cm. During installation and use, it's essential to follow the bending radius limit provided by the manufacturer to avoid excessive bending and ensure the service life of the screen.
8.4 What is Flexible OLED?
Flexible OLED (organic light-emitting diode) and flexible LED are two distinct display technologies. Flexible OLED utilizes organic materials as the light-emitting layer, enabling it to achieve ultra-thin, bendable, and even foldable screens. It is commonly used in products like smartphones, wearable devices, and TVs. In contrast, the flexible LED display employs inorganic LED chips as the light source and is mainly used for large-screen displays. The two differ in terms of application scenarios and display effects.
9.Flexible LED Screen Case Studies
Flexible LED screens have been widely adopted in numerous fields, creating many astonishing visual effects. For example, large-scale concerts use wraparound curved screens to enhance the visual impact, and shopping malls utilize cylindrical LED screens to draw customers' attention. These cases demonstrate that flexible LED displays are not just display tools but also a seamless combination of creativity and technology.
10.Conclusion
With the continuous progress of technology, the flexible LED display is spearheading the industry's innovation trend with its unique bendability. It is not only widely utilized in creative settings such as stage performances, exhibitions, and commercial advertisements but also supports more flexible installation methods, breaking free from the limitations of traditional display screens. RMGLED is dedicated to providing high-quality, cost-effective flexible LED display screens and offering you professional support and customized solutions!
