Indoor COB Small Pitch LED Screen

Ultra Fine Pixel Pitch COB LED Display for 4K & 8K Indoor Applications

The Indoor COB Small Pitch LED Screen is a premium ultra-high-definition indoor LED display built with advanced COB (Chip-on-Board) technology, delivering superior image clarity, enhanced durability, and exceptional color uniformity.

Designed for control rooms, conference centers, broadcast studios, luxury retail, museums, and corporate environments, this COB LED display provides a seamless visual experience with ultra-fine pixel pitch from P0.6 to P2.5.

Key Features of Indoor COB LED Display
-Ultra Fine Pixel Pitch (P0.6–P2.5)
-HDR10+ High Dynamic Image Quality
-High Brightness with Low Power Consumption
-Anti-Collision & High Durability Surface
-Seamless Splicing Design
-Stable 24/7 Operation

Full customization Services
-Supports micro-pitch (from P0.6), curved surfaces, irregular shapes, and seamless large screens.
-Customizable options: front/rear maintenance, ultra-thin cabinet (< 60 mm), intelligent temperature control, dual power & signal redundancy.

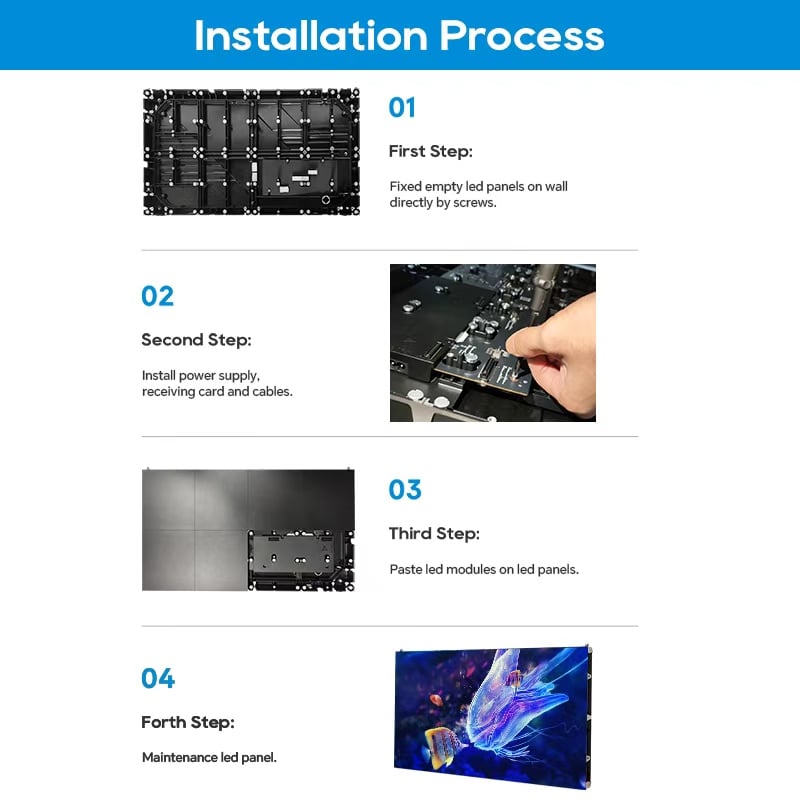

-Mounting modes: wall-mounted, embedded, stacked.

Applications of Indoor COB LED Display
-Command & Control Centers
-Conference & Meeting Rooms
-Broadcast & TV Studios

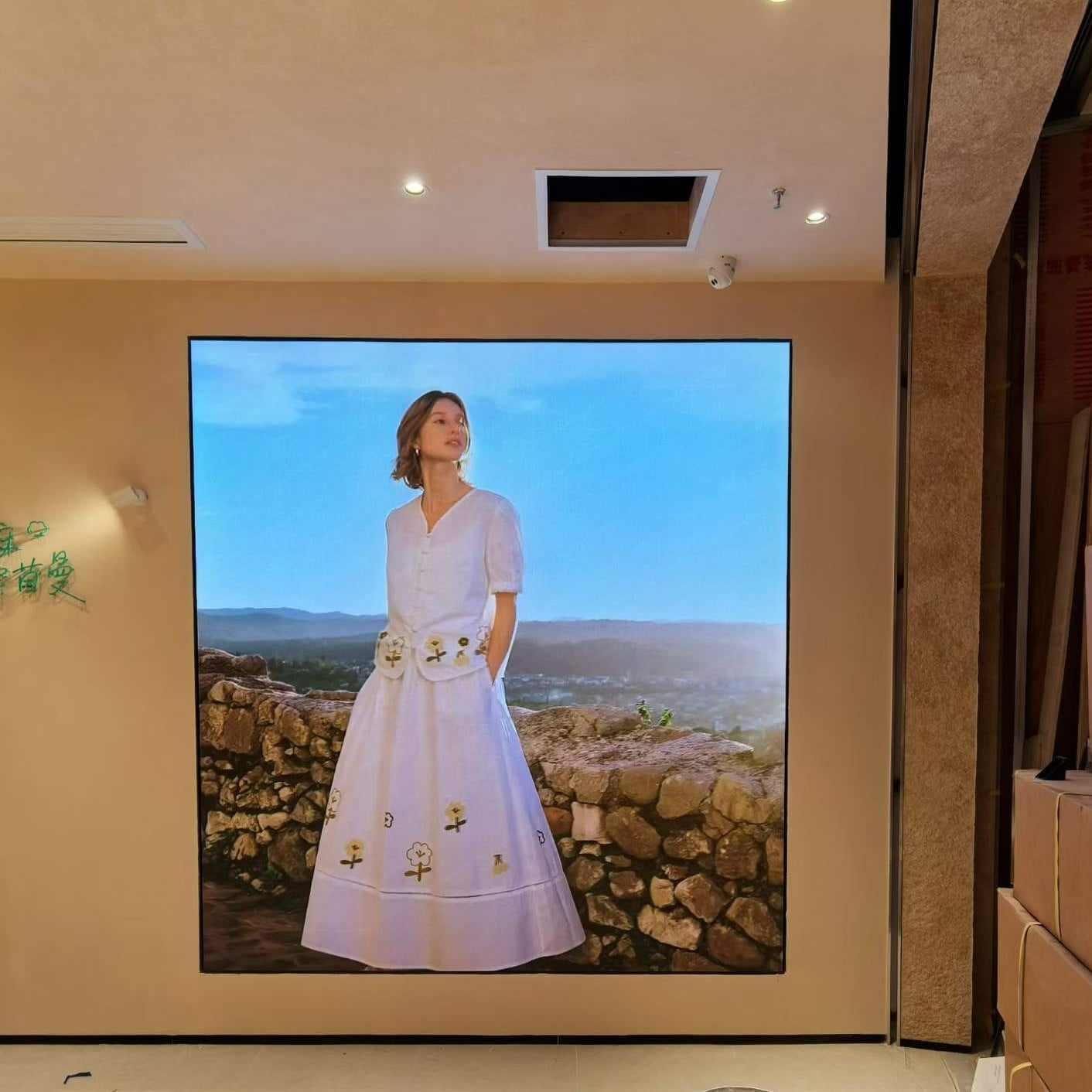

-Luxury Retail Stores
-Exhibition & Museum Displays
-Corporate Showrooms
-Smart City Monitoring Systems
-Cinema & Immersive Experience Rooms

Indoor COB Small Pitch LED Screen: Redefining High-Definition Indoor Visuals

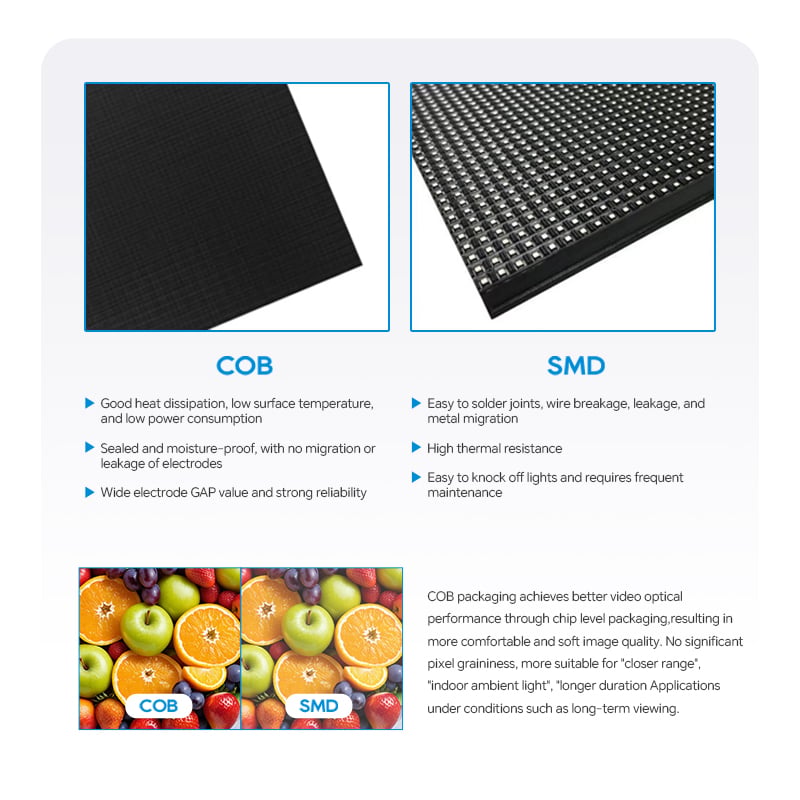

In indoor high-definition display scenarios—corporate control rooms, luxury retail, medical imaging centers, and premium halls—the demand for ultra-clear, stable, durable screens is soaring. The Indoor COB Small Pitch LED Screen leads with cutting-edge Chip-on-Board (COB) tech, meeting strict needs for precision, reliability, and longevity. Unlike traditional SMD small-pitch screens (plagued by brightness inconsistency, fragility, or high power use), it integrates innovations for unmatched clarity and stability, making it a top choice for premium indoor displays.

It solves key pain points: pixel gaps, fragile parts, unstable power, and uneven color/brightness. Conventional screens have visible seams, pixel damage from bumps, or high power use. Our Indoor COB Small Pitch LED Screen fixes these via advanced COB design—combining mini flip structure, dual power, seamless leveling, and robust protection for top performance and durability.

Product Advantages

1. Mini Flip COB Technology: Boost Pixel Density & Stability

At its core, mini flip COB tech elevates pixel density and stability. Traditional COB uses larger chips, lowering resolution or bulking modules. Our design packs LED chips densely, enabling ultra-small pitches (0.9mm, 1.2mm) for 4K/8K visuals. It eliminates SMD’s "screen door effect," making it ideal for control rooms. Chips bond directly to PCBs, reducing pixel loss/vibration damage and improving heat transfer—laying the groundwork for efficient cooling. Critical for medical/design fields needing pixel precision.

2. Dual Power Supply: Uninterrupted Operation

For 24/7 screens (retail signage, control rooms), power reliability is key. A single failure disrupts operations. The Indoor COB Small Pitch LED Screen has two parallel power modules—if one fails, the other takes over instantly. It balances load, reducing module strain and lifespan issues. Unlike single-power screens (prone to overheating/color dips), it stabilizes current/voltage, minimizing risks for security centers.

3. Seamless Leveling: Unified Visuals

Visible module seams ruin continuity. Our screen uses precision connectors and alignment guides for perfect module fitting. Edges are micro-polished, and frames have adjustable brackets to eliminate gaps. Ideal for large video walls (hotel backdrops, stages)—even over 10 meters, it looks like one panel. Enhances brand image for high-end retail.

4. Uniform Ink: Consistent Brightness & Contrast

Ink uniformity impacts visual comfort. Poor ink causes "bright/dark spots." The Indoor COB Small Pitch LED Screen uses professional even coating with light-absorbing ink. It ensures consistent pixel brightness/color, reduces glare, and deepens dark details. Critical for video editing/broadcasting studios needing content accuracy.

5. Uniform Color: True-to-Life Visuals

Color uniformity matters for art galleries/luxury retail. The screen uses strict chip testing (color temp/saturation/hue) and 16-bit gamma calibration to avoid "color drift." Maintains consistency lifelong—reproduces catalogs/paintings realistically. Ideal for medical imaging (doctors rely on color differences).

6. Low Power Cold Screen: Save Energy & Reduce Heat

High power raises costs and shortens lifespan. Our screen uses energy-efficient chips/optimized circuits, cutting power by 30% vs. traditional models. Surface temp stays below 45°C (no "hot spots"), no need for fans/AC. Suitable for quiet spaces (libraries, hotels) and aligning with sustainability goals, lowering maintenance costs.

7. HDR10+ Image Quality: Richer Dynamic Range

HDR10+ is key for premium visuals—it adjusts brightness/contrast frame-by-frame (vs. fixed HDR10). The Indoor COB Small Pitch LED Screen reveals details in sunsets (bright sun + dark foreground). More lifelike than basic HDR/no HDR screens, perfect for home theaters/premium retail.

8. High Reliability: Long-Term Stability

Users expect 50,000+ hours of use. The screen uses fire-resistant PCBs, gold-plated connectors, and 72-hour high-temp/humidity testing. COB tech reduces solder joints (SMD failure points) and protects chips from dust/moisture. Stable in dry/humid environments (control rooms, hotels), minimizing downtime for banks/command centers.

9. Anti-Bump/Scrub/Anti-Static: Durability

Indoor screens face bumps (carts), scrubbing (cleaning), and static (dry spaces). Our screen has tough COB encapsulation (resists bumps/scratches) and anti-static PCB coating. Unlike SMD (exposed chips), it withstands soft cloth scrubbing/minor bumps. Critical for electronics factories/data centers, cost-effective for high-traffic areas (malls).

10. Panel Hardness >4H: Scratch Resistance

Panel hardness (pencil test >4H) resists scratches from plastic/wood/soft metals. Easy to clean with a damp cloth—no pen/folder marks. Ensures long-term clarity for retail/schools.

In conclusion, the Indoor COB Small Pitch LED Screen excels in performance, reliability, and durability. It meets top standards for professional (medical/control rooms) and commercial (retail/hotels) use. Invest today to transform indoor spaces with premium visuals.

Specification

Indoor LED Display Specification
Type Part Number	P1.25	P1.538	P1.86	P2.0	P2.5	P3	P4
Pixel Pitch (mm)	1.25	1.538	1.86	2	2.5	3	4
LED Standard	SMD1010	SMD1212	SMD1515	SMD1515	SMD2121	SMD2121	SMD2121
Module Dimensions (mm)	320*160	320*160	320*160	320*160	320*160	192*192	256*256
*Module Resolution (LW)**	256*128	208*104	172*86	160*80	128*64	64*64	64*64
Scan Mode	64	52	43	40	32	32	32
Minimum Viewing Distance (m)	1	1	1	2	2	3	4
Brightness (CD/㎡)	≥600	≥600	≥600	≥600	≥600	≥600	≥600
*Cabinet Size (LW) (mm)**	640*480	640*480	640*480	640*480	640*480	576*576	512*512
Cabinet Material	Die Casting Aluminum	Die Casting Aluminum	Die Casting Aluminum	Die Casting Aluminum	Die Casting Aluminum	Iron	Iron
Cabinet Weight	6.2Kg	6.2Kg	6.2Kg	6.2Kg	6.2Kg	8Kg	7Kg
Max Power Consumption	650W/㎡	650W/㎡	650W/㎡	650W/㎡	650W/㎡	600W/㎡	400W/㎡
Average Power Consumption	220W/㎡	220W/㎡	220W/㎡	220W/㎡	220W/㎡	200W/㎡	133W/㎡
Refresh Rate (Hz)				3840HZ
Protection Level	≥IP20
View Angle	140°
Grey Level	≥4096 Level
Life Span	100000h
Working Voltage	AC220V (110V)±15%, 47 - 63HZ
Signal Transfor	LAN Cable
Control System	Computer Control System

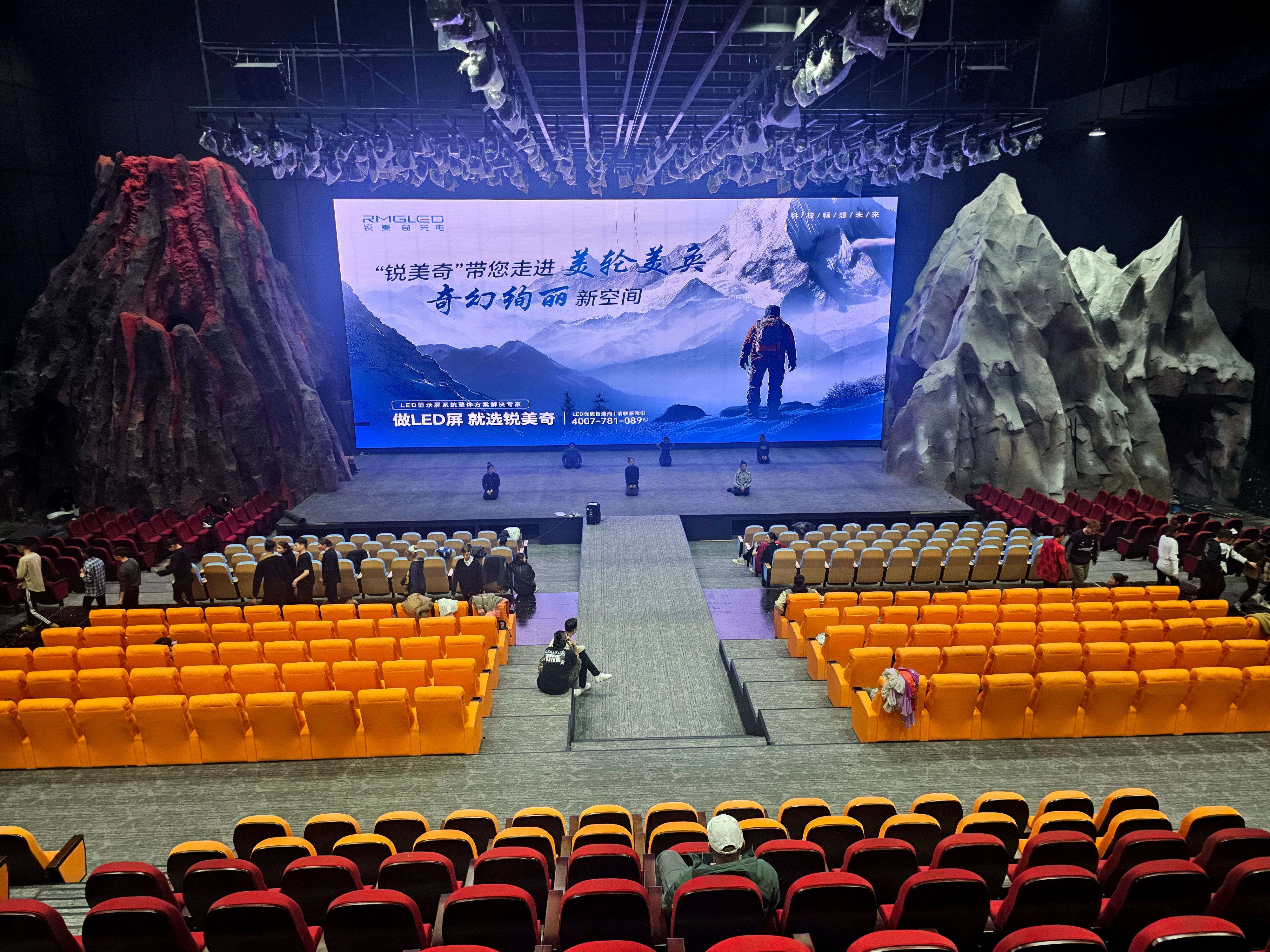

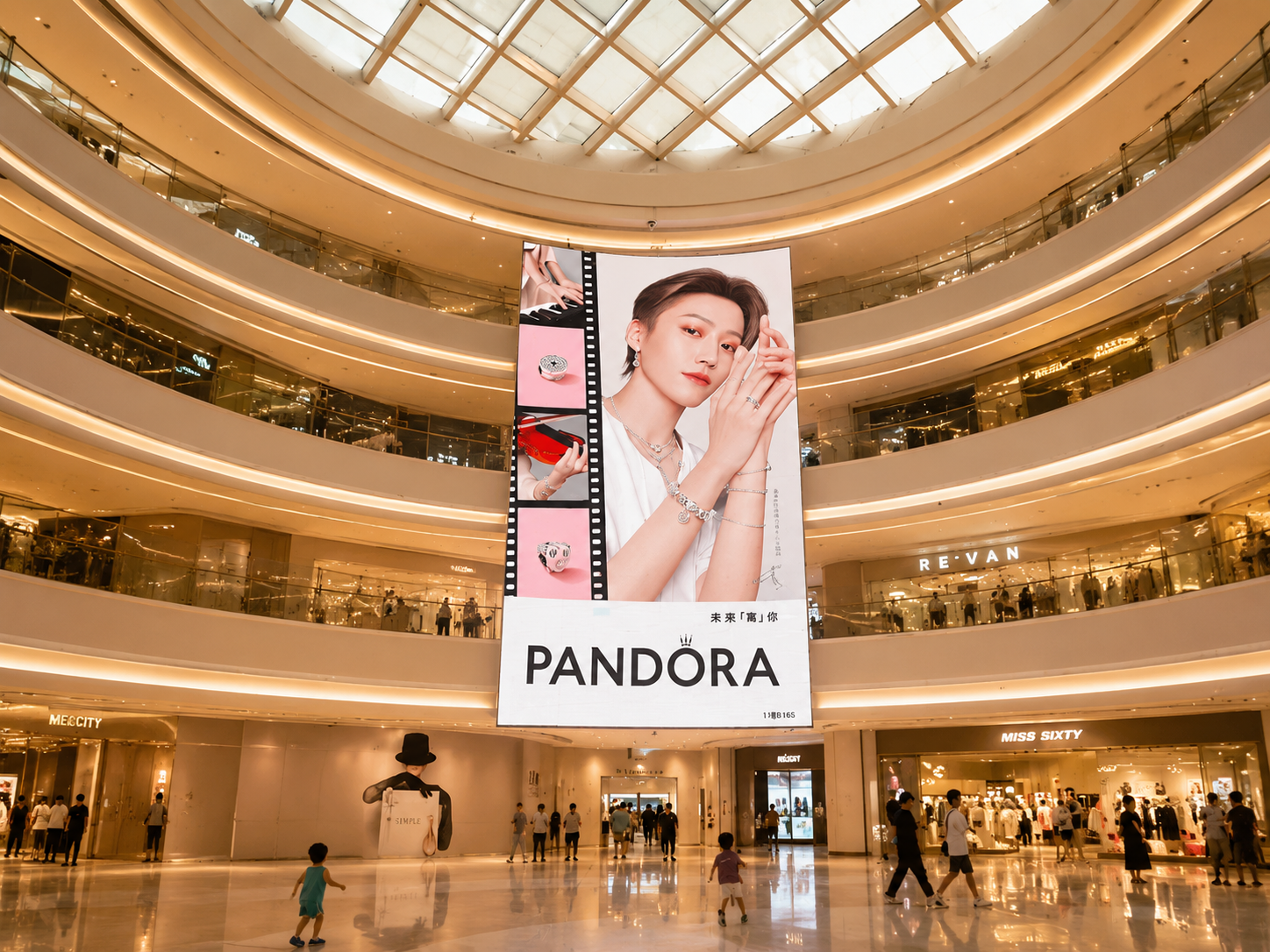

ChatGPT Image 2026年5月6日 10_25_23.png 伊犁特克斯体育馆九宫游园2.jpg

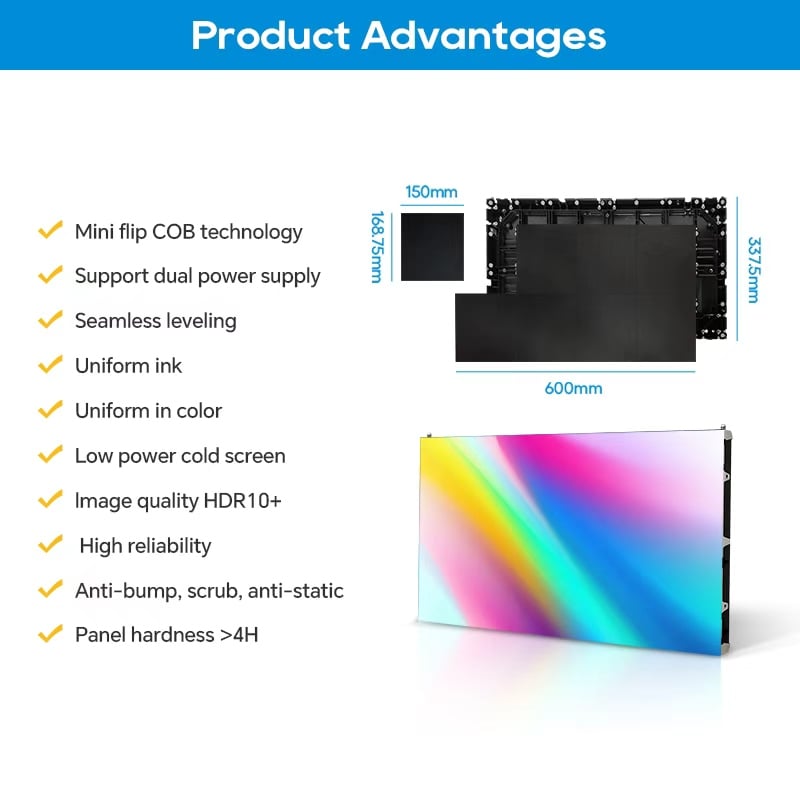

Product Features

- Mini flip COB technology
- Support dual power supply
- Seamless leveling
- Uniform ink
- Uniform in color
- Low-power cold screen
- Image quality HDR10+
- High reliability
- Anti-bump, scrub, anti-static
- Panel hardness >4H

Technical Parameters

Series	112 series				168 series
Product specification	P0.62	P0.78	P0.93	P1.25	P0.78	P0.93	P1.25	P1.56	P1.87
COB light board dimensions	150*112.5mm	150*112.5mm	150*112.5mm	50*112.5mm	150*168.75mm	150*168.75mm	150*168.75mm	150*168.75mm	50*168.75mm
COB panel resolution	240*180	192*144	160*120	120*90	192*216	160*180	120*135	96*108	80*90
Display unit resolution	960*540	768*432	640*360	480*270	768*432	640*360	480*270	384*216	320*180
Cell size	600337.570mm	600337.570mm	600337.570mm	600337.570mm	600337.559.5mm	600337.559.5mm	600337.559.5mm	600337.559.5mm	600337.559.5mm
Circuit scheme	Common cathode circuit	Common cathode circuit	Common cathode circuit	Common anode/common cathode circuit	Common cathode circuit	Common cathode circuit	Common anode/common cathode circuit	Common anode/common cathode circuit	Common anode/common cathode circuit
Gray level	22bit+(10bit grayscale processing)
Brightness	600nit (standard) 1000nit (customized)
Contrast rate	2000:1
Refresh rate	1920-3840HZ
Viewing Angle	Horizontal/vertical 160°
Power supply requirement	AC90 - 260V (50/60Hz)
Maximum power consumption	<61 W per unit, <405 W/m² (600 m)
Average power consumption	<20 W per unit, <100 W/m² (600 m)
Authentication	3C/energy saving
