Bars, clubs, event production companies, and wedding DJs buy these to replace plain DJ facades or static backdrops. The content updates over Wi-Fi or USB. Setup takes one person about 10 minutes.Key Features

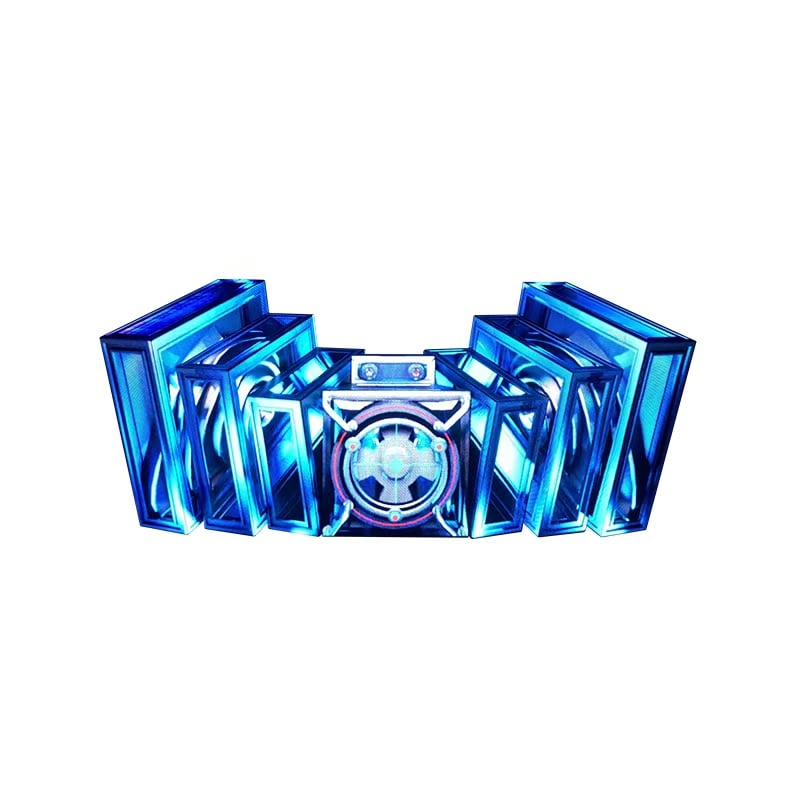

Feature 1: Curved DJ Booth Shape
The cabinet is curved, not flat. It wraps around the DJ console to form a 180-degree or 270-degree video arc. This shape covers the sides and back of the DJ area, replacing a plain fabric facade with a programmable screen. The curve also works as a bar counter front when used in cocktail lounge settings.
Feature 2: Foldable and Portable
The booth breaks down into panels that fold flat. Built-in wheels on most models let one person roll it from a van to the venue floor. Assembly uses quick-release locks, no tools. A single person can set it up in about 10 minutes and break it down in 5. This matters for mobile DJs and event companies that work multiple venues per week.
Feature 3: Full Color Video Playback
The screen plays standard video files (MP4, AVI, MOV) from a USB stick or over Wi-Fi. You can run logos, music visualizers, live camera feeds, pre-recorded loops, or beat-synced content. Split-screen mode lets you show a logo on one section and video on another. The media player is built in; you do not need a separate laptop running during the show.
Feature 4: P2.5 Pixel Pitch (Standard)
P2.5mm is the most common pitch for this product category. At 2-6 meter viewing distance (typical for a DJ booth audience), text and graphics read clean. Some suppliers offer P1.86 for closer viewing or P2.6/P3 for longer throw. Finer pitch costs more but looks sharper up close. P2.5 hits the price-to-quality sweet spot for nightclub use.
Feature 5: Custom Logo and Color Changing
Most models in this category support custom logo display and RGB color-changing modes. You can program the booth to display a venue logo, sponsor branding, or event theme colors. Color modes cycle automatically or respond to music via built-in sound activation. This is a standard feature, not a premium upgrade.
Feature 6: Aluminum Frame Construction
The frame is aluminum, not steel. This keeps weight down (most units run 15-25 kg per panel section) while holding up to frequent transport. Aluminum also resists the humidity and drink spills common in bar environments better than unprotected steel. The front face is typically tempered acrylic or PC board.
Feature 7: Wireless Content Updates
Content goes on via USB stick or Wi-Fi app. No need to plug in a laptop during the event. The app lets you schedule playlists, switch between video loops, and change logos from your phone. Some models also take HDMI input for live video feed from a camera or mixer.
Feature 8: Linkable for Larger Setups
Panels connect to form longer runs. A single curved booth unit covers one DJ console. Two or three units linked together can wrap a larger stage area or form a full backdrop wall. The linking uses standard data cables between cabinets.

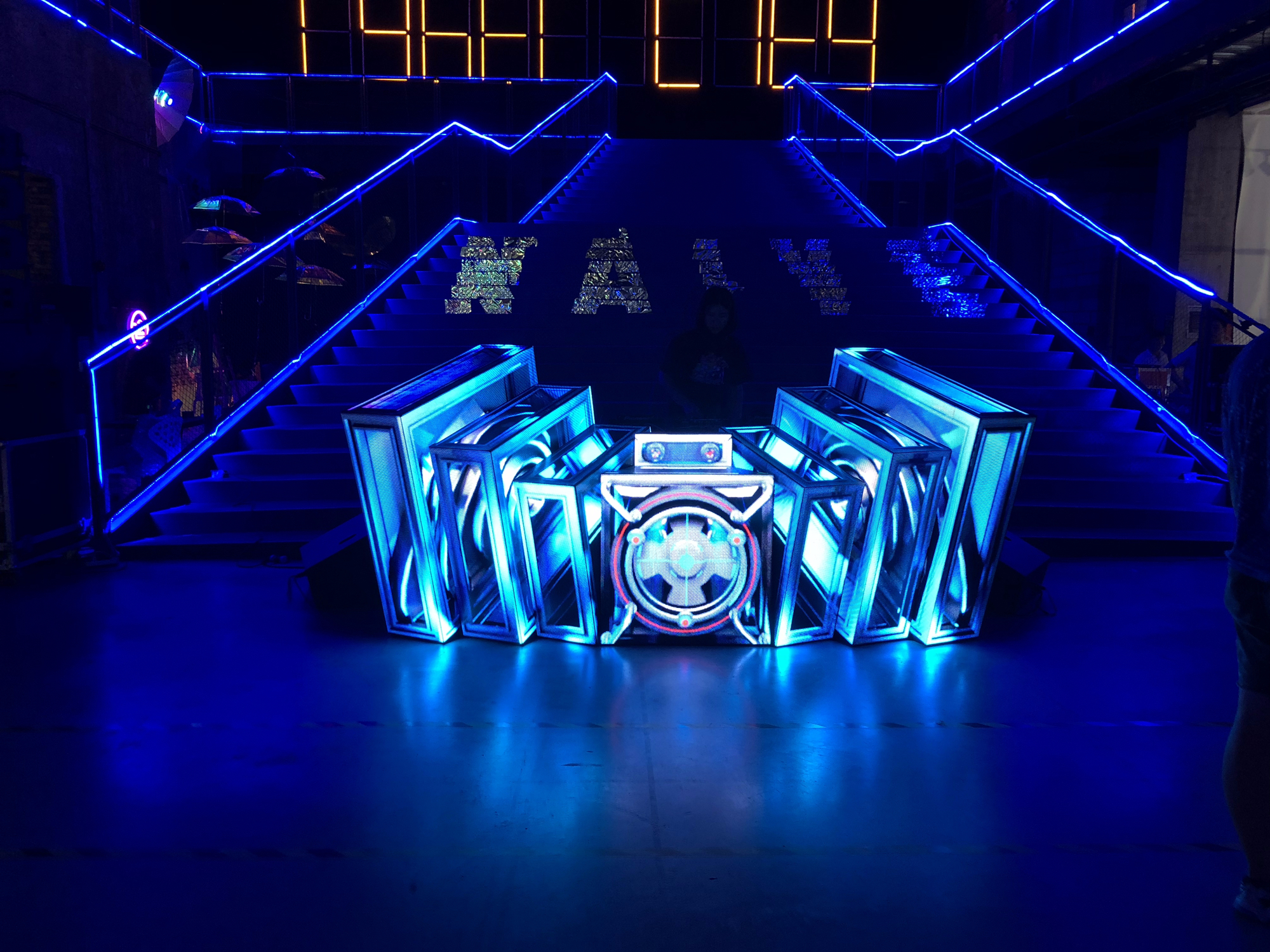

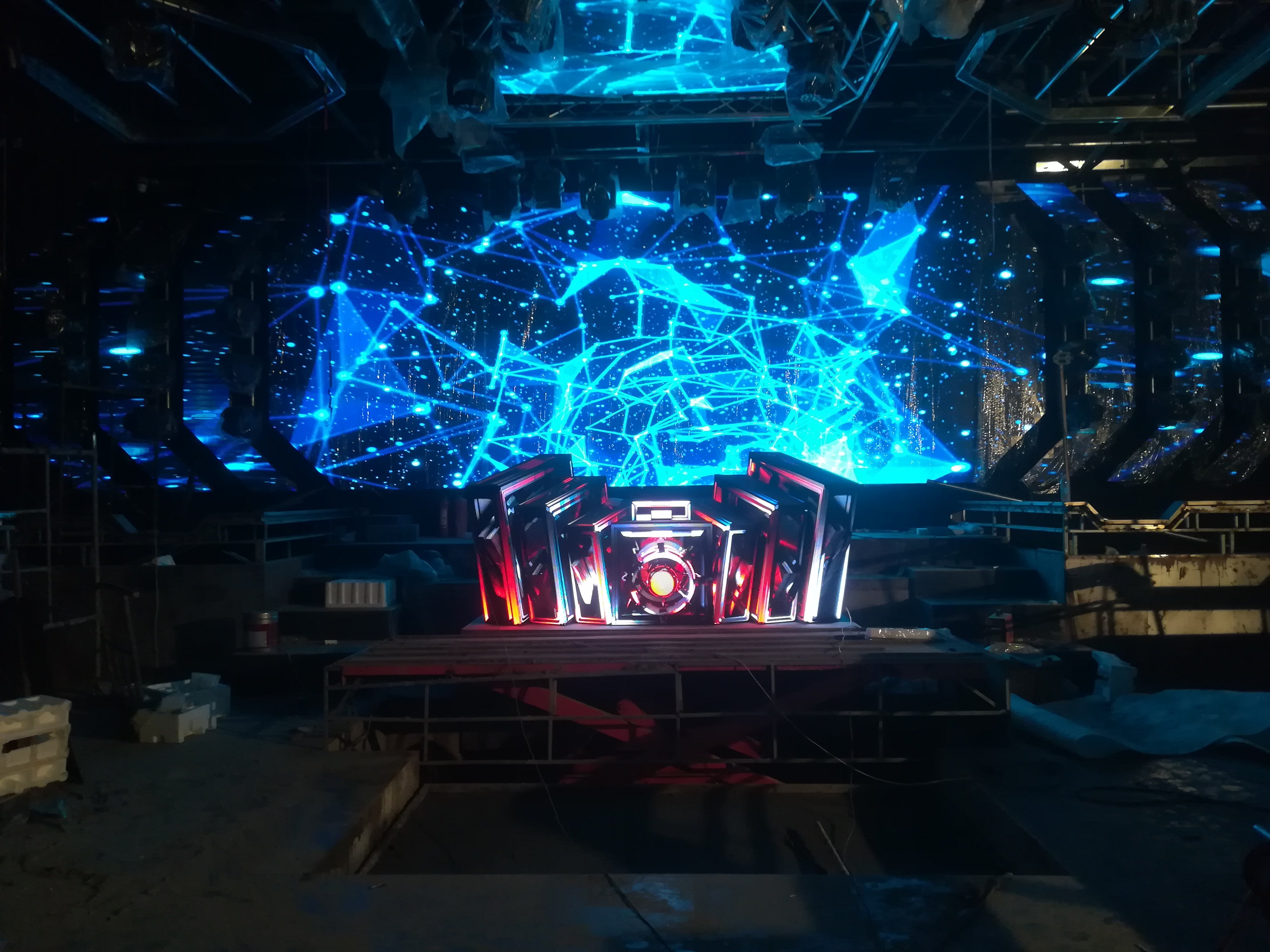

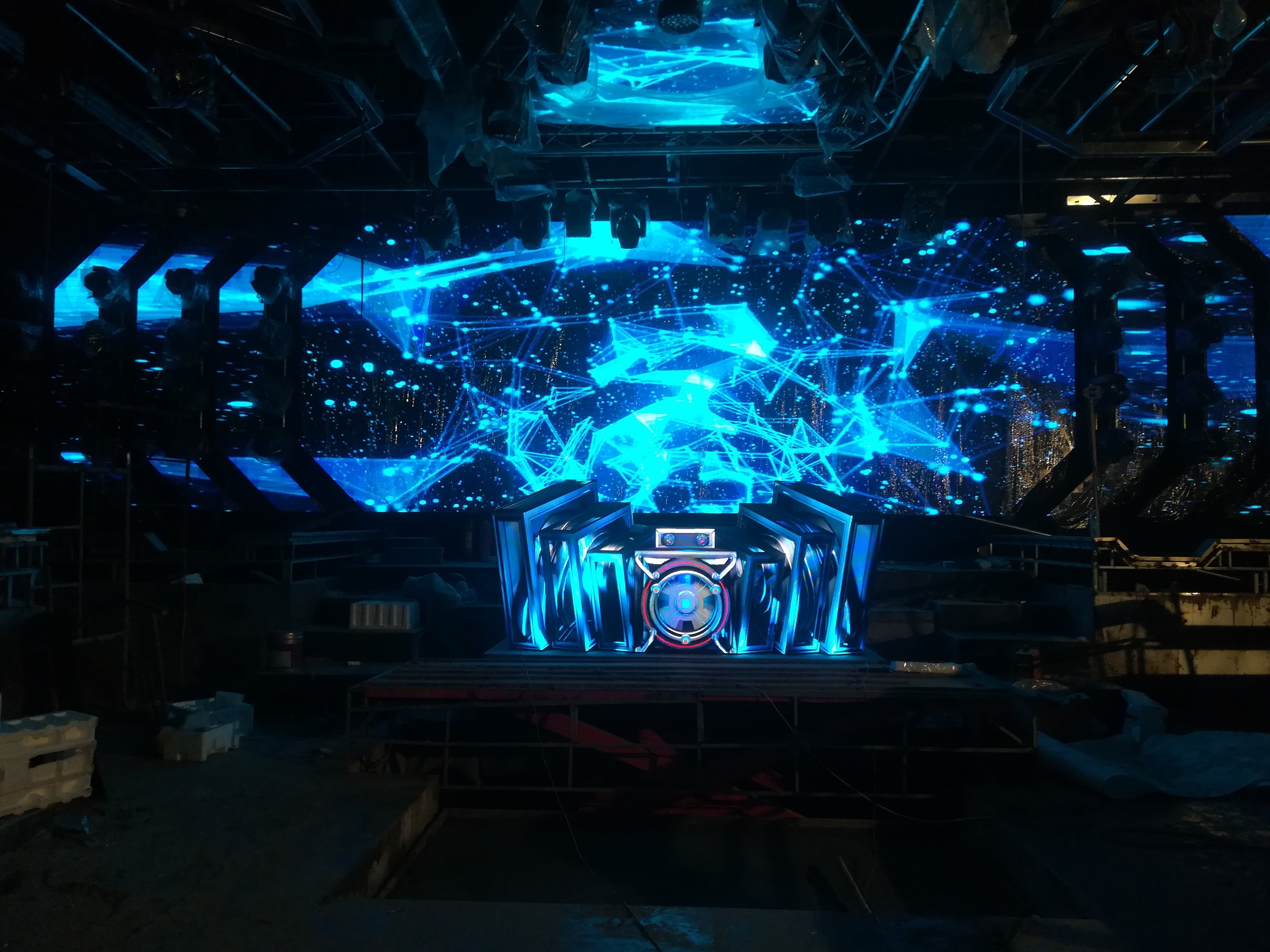

ApplicationsNightclubs and Dance Bars
The primary use case. The curved LED booth replaces a plain DJ facade with a screen that plays visuals synced to the music. Venues use it for resident DJ sets, guest performances, and themed nights.
Music Festivals and Live Events
Mobile DJs and event production crews use these as portable stage elements. The foldable design and wheels make it practical for multi-day festivals where setup and teardown happen daily. The curved shape works well on smaller stages or as a secondary visual element on larger stages.
Wedding and Corporate Events
Wedding DJs use the booth as a backdrop with the couple's names or monogram displayed. Corporate events use it for branded content during presentations or gala dinners. The custom logo feature and portable setup make it practical for one-off events.
Bar Counters and Cocktail Lounges
The curved shape fits around a bar counter front. Instead of a static bar facade, the LED screen runs ambient visuals, promotional content, or brand messaging. Some venues use it seasonally for special promotions and store it folded when not needed.
Trade Shows and Exhibitions
Booth backdrops at trade shows. The curved design stands out from flat backwalls. Foldable transport is practical for exhibitors who ship between cities. Content updates over Wi-Fi for different show audiences.
Retail Storefronts
Shopping mall stores use the curved LED as a digital window display. The nightclub shape works as a curved counter display for product launches or seasonal promotions.
Why Choose This Nightclub LED BoothShape That Fits the Venue
Flat LED panels behind a DJ look like a screen propped against a wall. The curved booth shape is built to fit the physical space a DJ occupies. It wraps the console, covers the sides, and faces the audience at multiple angles. The form factor is the product.
Built for Transport
Event companies and mobile DJs break down and move their gear weekly. These booths fold, have wheels, and use tool-free assembly. A fixed LED wall installation cannot serve a DJ who works three venues in a weekend.
Price Point
Based on 30 competing products on Alibaba.com (search date: 2026-08-26), DJ booth LED displays range from $14 to $2,825 per unit. The bulk of functional models sit between $400 and $800 per unit or $450-510 per square meter. At this price, the product replaces both a DJ facade and a separate visual screen.
Modular Replacement
If one LED module section fails, you replace that module. You do not ship the whole booth back. This is a practical advantage over sealed LCD panels used in some DJ booth products. Repair takes minutes and costs tens of dollars per module, not hundreds for a full panel replacement.
Custom Branding Without Extra Cost
Logo display and color-changing are standard features, not add-ons. A venue or event sponsor gets their branding on the screen without paying for a custom print or vinyl wrap. The content changes by event, which a printed facade cannot do.
Product Specifications
| Pixel Pitch |
P2.5mm (standard) / P1.86, P2.6 available from some suppliers |
| LED Type |
SMD2121 |
| Shape |
Curved (180 or 270 degree arc), nightclub DJ booth form |
| Cabinet Material |
Aluminum frame, tempered acrylic or PC front |
| Cabinet Size |
Varies by model; common: 500x1000mm panels configured into curved booth |
| Weight |
Approximately 15-25 kg per panel section (based on competitor data) |
| Brightness |
800-1200 nits (indoor) |
| Refresh Rate |
>=1920Hz |
| Color Depth |
16-bit |
| Viewing Angle |
H: 140 degrees / V: 140 degrees |
| Lifespan |
>=100,000 hours |
| Input Voltage |
110-220V AC, 50/60Hz |
| Power Consumption |
Approximately 80-150W per panel section (estimated) |
| Control |
Wi-Fi, USB, HDMI input |
| Media Player |
Built-in, supports MP4/AVI/MOV/JPG/PNG |
| Content Management |
Smartphone app or web CMS, USB offline playback |
| Custom Logo |
Yes, standard feature |
| Color Modes |
RGB color changing, sound-activated option on some models |
| Design |
Foldable, portable, wheeled, tool-free assembly |
| Setup Time |
Approximately 10 minutes, one person |
| Folded Size |
Flat panels, stackable for transport |
| Linkable |
Yes, panels connect for larger setups |
| Operating Temperature |
-10 to 45 degrees C |
| Storage Temperature |
-20 to 60 degrees C |
| Certifications |
CE, FCC, RoHS |
| Warranty |
2-year limited, lifetime tech support |
| MOQ |
1 piece |
| Lead Time |
7-15 days (estimated) |
Note Competitor data covers 30 products. Specific price distribution and per-product details are available in the original search results.
Factory Direct LED Manufacturer
| Manufacturing Experience |
10+ years producing LED display products for entertainment and event markets. |
| OEM/ODM Customization |
Custom curve radius, pixel pitch (P1.86/P2.5/P2.6), booth dimensions, branding, color modes, and wheel/handle configurations. Send your specs for a tailored quote. |
| Factory Pricing |
Direct pricing with volume discounts for rental fleets and multi-venue deployments. |
| Shipping |
International logistics, quick lead times, on-site setup guidance available. |
| Warranty |
2-year limited warranty. Lifetime technical support and spare module availability. |
FAQQ: What is a nightclub shaped LED display?
It is a curved LED screen built in the shape of a DJ booth. Instead of a flat panel behind the DJ, the screen curves around the console to cover the sides and back. It functions as both the booth structure and the video display.
Q: What pixel pitch should I choose?
P2.5mm is the standard for nightclub DJ booths. The audience stands 3-6 meters away, and P2.5 reads clean at that distance. P1.86 gives sharper text if the booth is in a small bar with a close audience. P2.6 or P3 works for larger venues where viewers are farther back. P2.5 is the price-to-quality middle ground.
Q: How does the booth fold for transport?
The curved booth is made of panel sections connected by hinges or quick-release locks. For transport, you unlock the joints and fold the panels flat. Most models have wheels on the base. One person can fold, roll, and load the unit into a van. No tools needed.
Q: Can I display my venue or event logo?
Yes. Custom logo display is a standard feature on these products. You upload your logo via USB or the Wi-Fi app, and it shows on the screen. You can set it to static display, color cycling, or mixed with video content.
Q: How do I update the video content?
Three options: USB stick (plug and play, no network needed), Wi-Fi app (update from your phone, schedule playlists), or HDMI input (live feed from a camera or video mixer). The built-in media player handles the file playback; no laptop required during the show.
Q: Does the screen sync to music?
Some models have sound-activated mode, where the screen changes color or pattern in response to audio input. This is a feature on some but not all models. Check with the supplier if sound activation is included on the specific unit you want.
Q: Can one person set it up?
Yes. The foldable design with quick-release locks and wheels is built for one-person operation. Setup takes about 10 minutes. You unfold the panels, lock the joints, plug in power, and start content. Breakdown takes about 5 minutes.
Q: Can I link multiple booths together?
Yes. Panels connect with data cables to form longer runs or larger curved arrays. Two units can wrap a bigger stage. Three or more can form a full curved backdrop wall. The linking is standard across most models in this category.
Q: How much does a nightclub LED DJ booth cost?
Based on 30 competing products on Alibaba.com (search date 2026-08-26), prices range from $14 for basic decorative panels to $2,825 for premium curved six-foldable units. Most functional DJ booth LED displays with video capability sit between $400 and $800 per unit. Price depends on pixel pitch, size, curve complexity, and feature set.
Q: Is the display waterproof?
These are indoor-rated displays. They are not designed for rain or direct water exposure. Some models carry an IP65 rating for splash resistance, which helps with drink spills in bar environments. For outdoor use, look at outdoor-rated LED booth models with higher brightness and sealed enclosures.
Q: What happens if an LED module breaks?
You replace that single module section. The booths use modular LED panels, so a failed module pops out and a new one goes in. This costs tens of dollars per module and takes minutes. It is a practical advantage over sealed LCD DJ booth products that require full-unit replacement.
Q: Do you offer custom sizes and curves?
Yes. OEM/ODM customization includes custom curve radius, booth dimensions, pixel pitch, branding, and hardware configuration. Send your specifications and we will quote a custom build.
