IP65 waterproof outdoor LED video wall with 5,000–8,000 nits brightness. Suitable for billboards, stadiums, events, and 24/7 commercial advertising. Factory direct, global shipping.

Key Features:

Lower upfront cost

High structural strength & good rigidity

Excellent wind resistance performance

High-level waterproof & dust-proof sealing

Good anti-deformation capability

Suitable for fixed outdoor installation

Full Customization Services:

-Supports P4–P16 pitch, oversized/irregular sizes, flat/curved/spherical shapes.

-Customiable: IP67/IP68, salt-fog resistance (1000h test), AC/fan dual cooling, wind-resistant structure (Level 14).

-Mounting: pole, high-rise billboard, wall.

URL Slug:/outdoor-ip65-led-video-wall

Outdoor Waterproof LED Video Wall — IP65 Full Color Display

If you have ever tried running a standard display under direct sunlight or in a rainstorm, you already know the problem. Most screens wash out, fog up, or fail outright. This outdoor LED video wall is built to fix exactly that.

It delivers 5,000 to 8,000 nits of brightness, meaning the picture stays sharp even at noon on a cloudless day. The cabinet is sealed to IP65 — rain, dust, humidity, coastal salt spray, none of it gets inside. We have seen these panels run 24/7 on highway billboards, stadium facades, and open-air concert stages for years without a module swap.

Available in pixel pitches from P4 down to P10, with both aluminum and iron cabinet options. Whether you need a fixed installation for a shopping mall facade or a rental setup that gets assembled and torn down every weekend, the modular panel design makes it practical.

What Makes It Work Outdoors

Brightness that competes with the sun.

5,000 nits is the baseline. We push to 8,000 nits on request. This is not about specs on paper — it is about whether your ad is still readable when the sun hits the screen at 2 PM. With SMD full-color LEDs and adaptive brightness control, it is.

Actually waterproof.

IP65 means the front is protected against water jets and the seams are gasketed. We do not rely on just a coating — the module-to-cabinet interface is mechanically sealed. Our clients in Southeast Asia, the Middle East, and coastal South America run these through monsoon seasons without issues.

Smooth video, no flicker.

Refresh rate of 3,840Hz means camera crews can shoot directly against the screen and the footage comes out clean. If you are running a live broadcast or recording a concert, this matters a lot more than resolution specs.

Modular panels, fast setup.

Each cabinet is 500×500 mm or 500×1,000 mm, held together with quick-lock rigging. A crew of two can assemble a 10-square-meter wall in under an hour. Disassembly is faster. For rental companies, that directly affects profitability.

Lower power draw than you would expect.

Typical consumption runs 100–300W per square meter depending on content and brightness. Over a 50 m² wall running year-round, the difference between a well-tuned power system and a generic one adds up fast.

Where These Screens End Up

This is not one product for one use case. We see the same panel architecture deployed across very different environments:

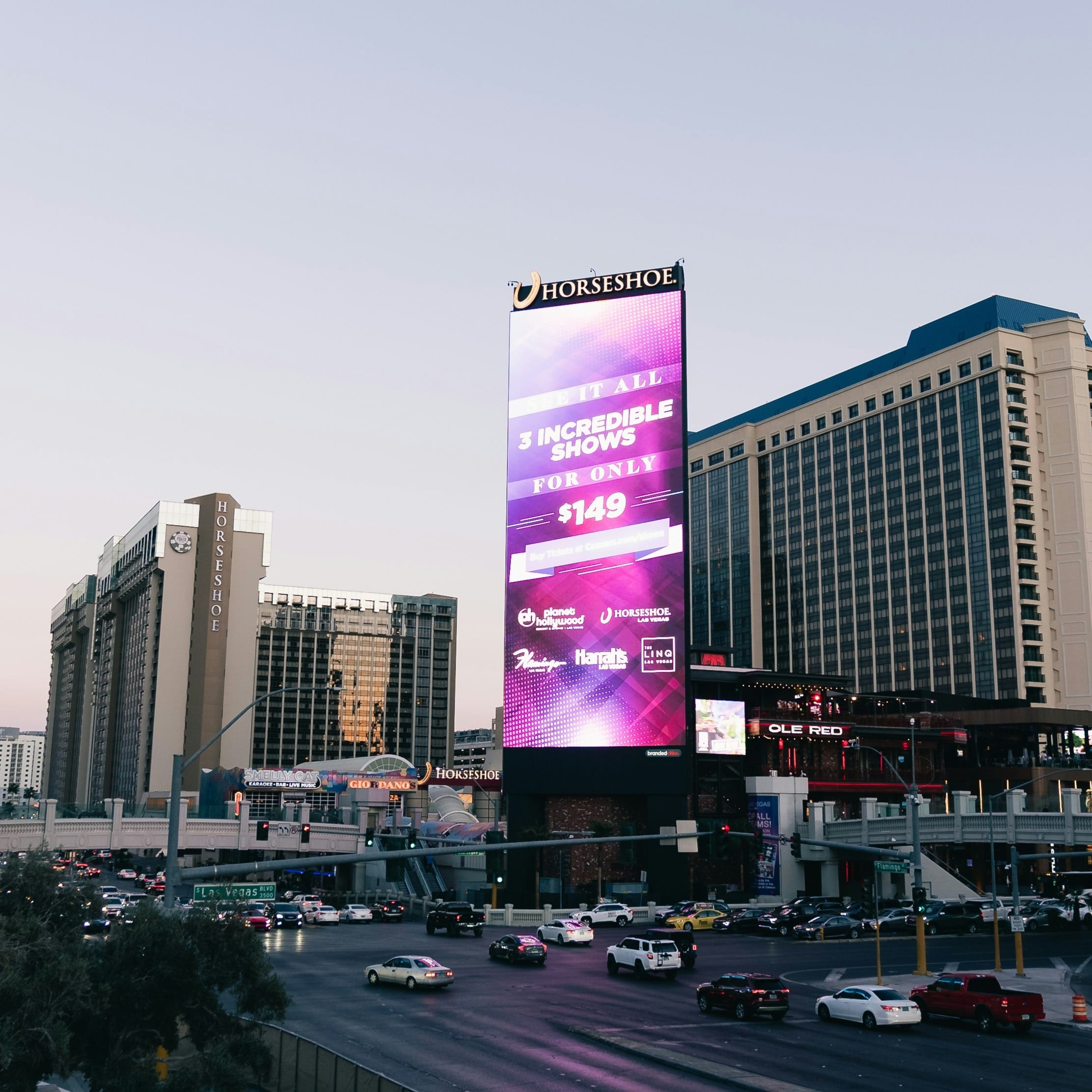

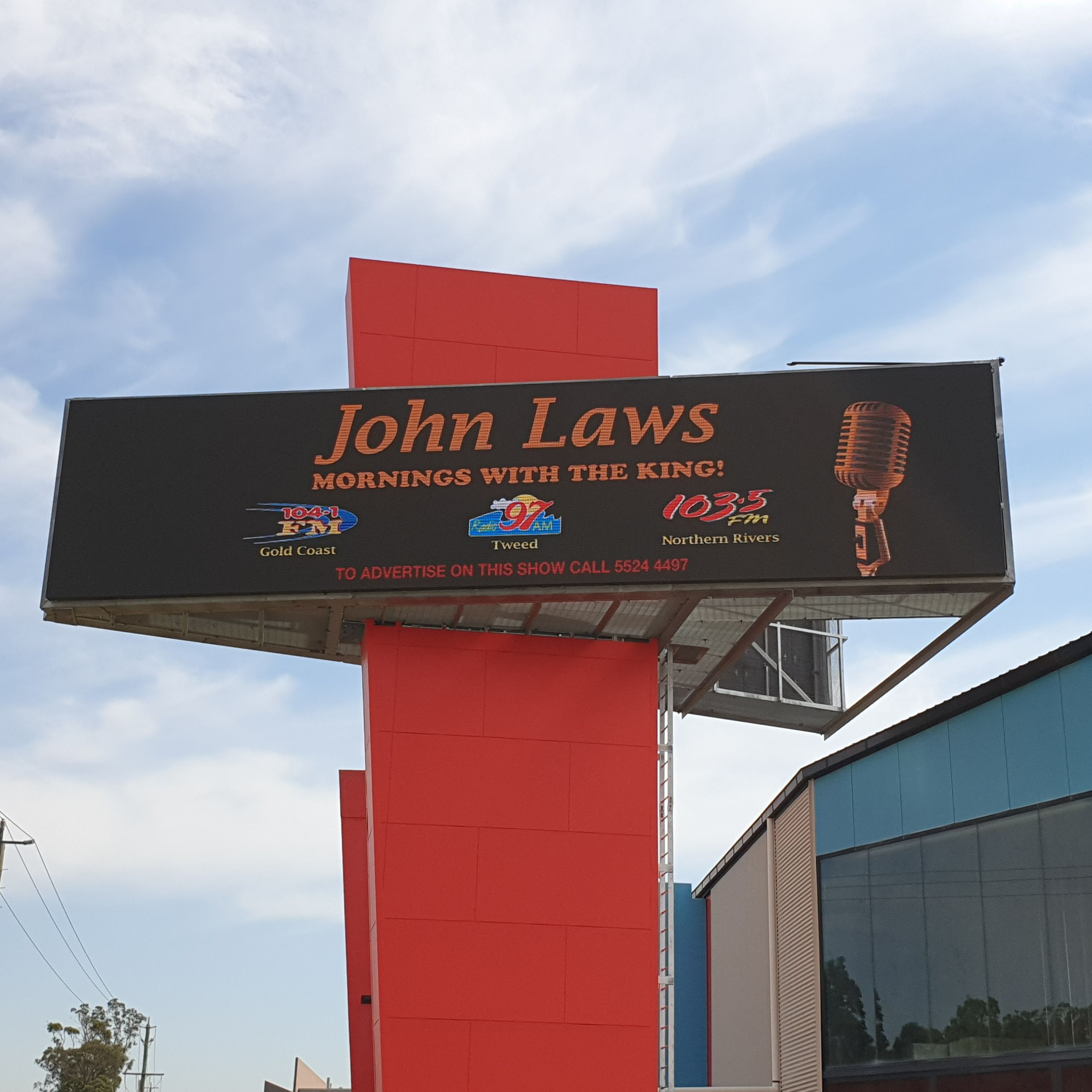

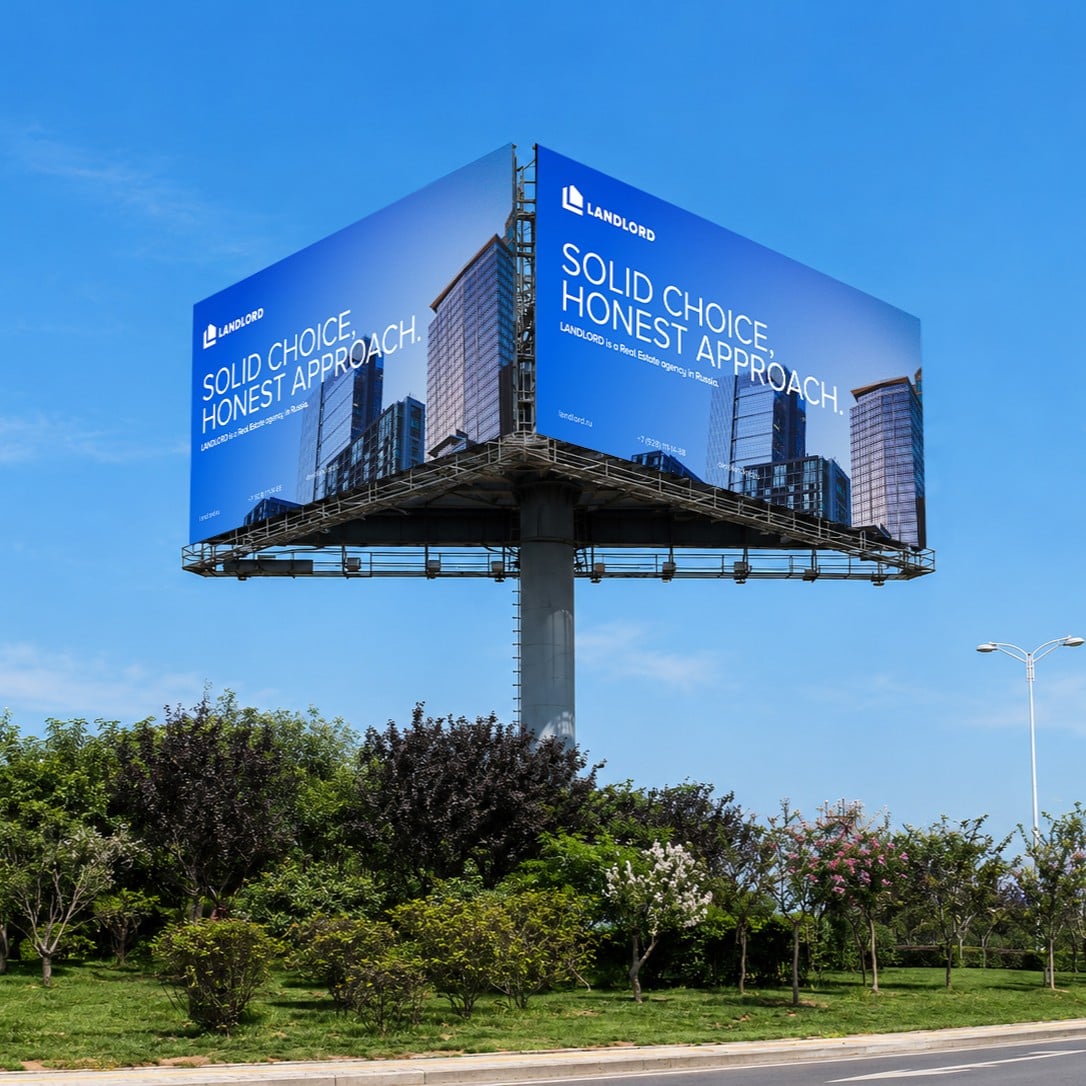

Outdoor billboards and roadside advertising

●— the obvious one. High brightness, weatherproof, low maintenance.

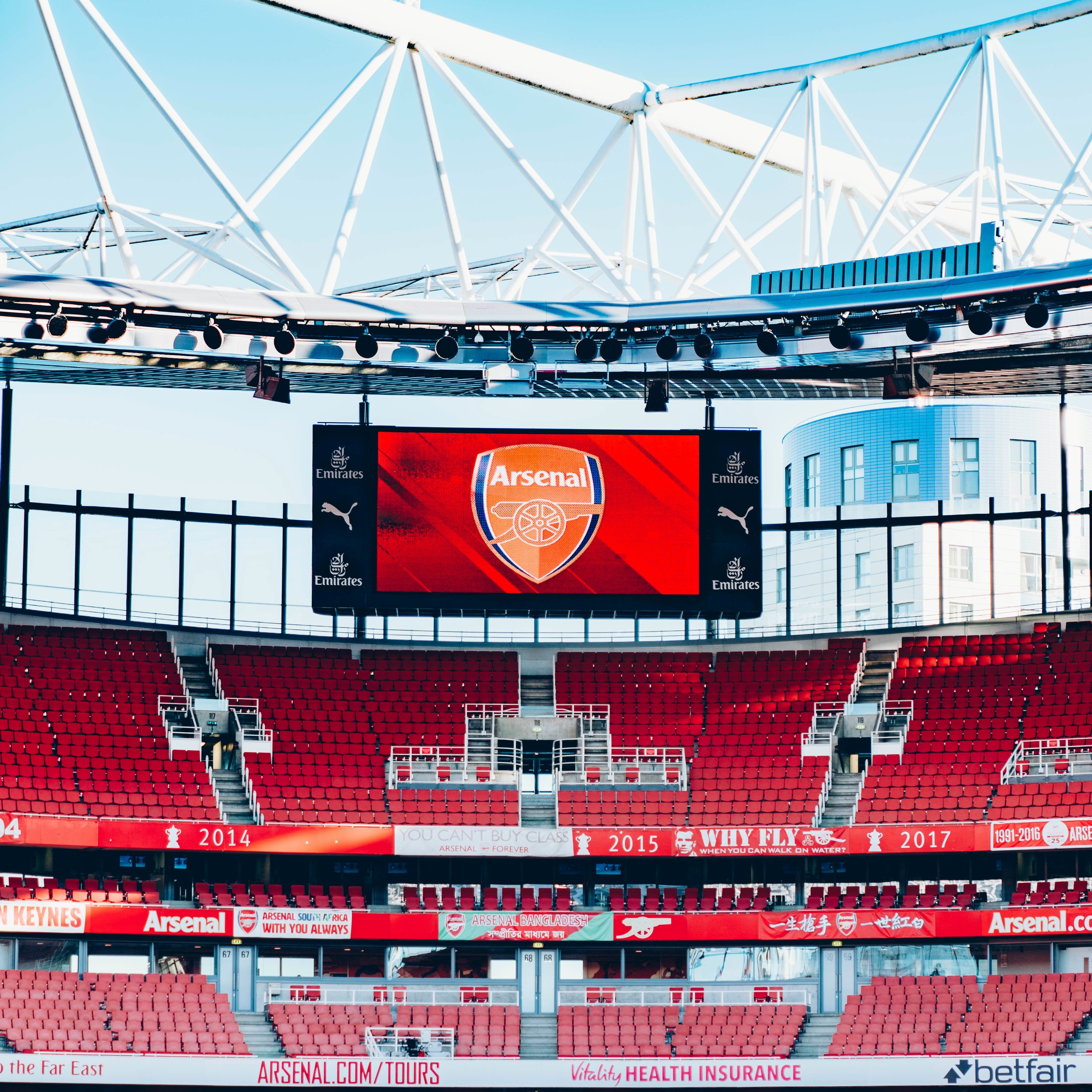

Sports stadiums and arena perimeters

●— needs the high refresh rate for broadcast and the impact resistance for crowd proximity.

Concerts, festivals, and live events

●— rental staging companies use these as backdrop walls, stage wings, and crowd-facing screens.

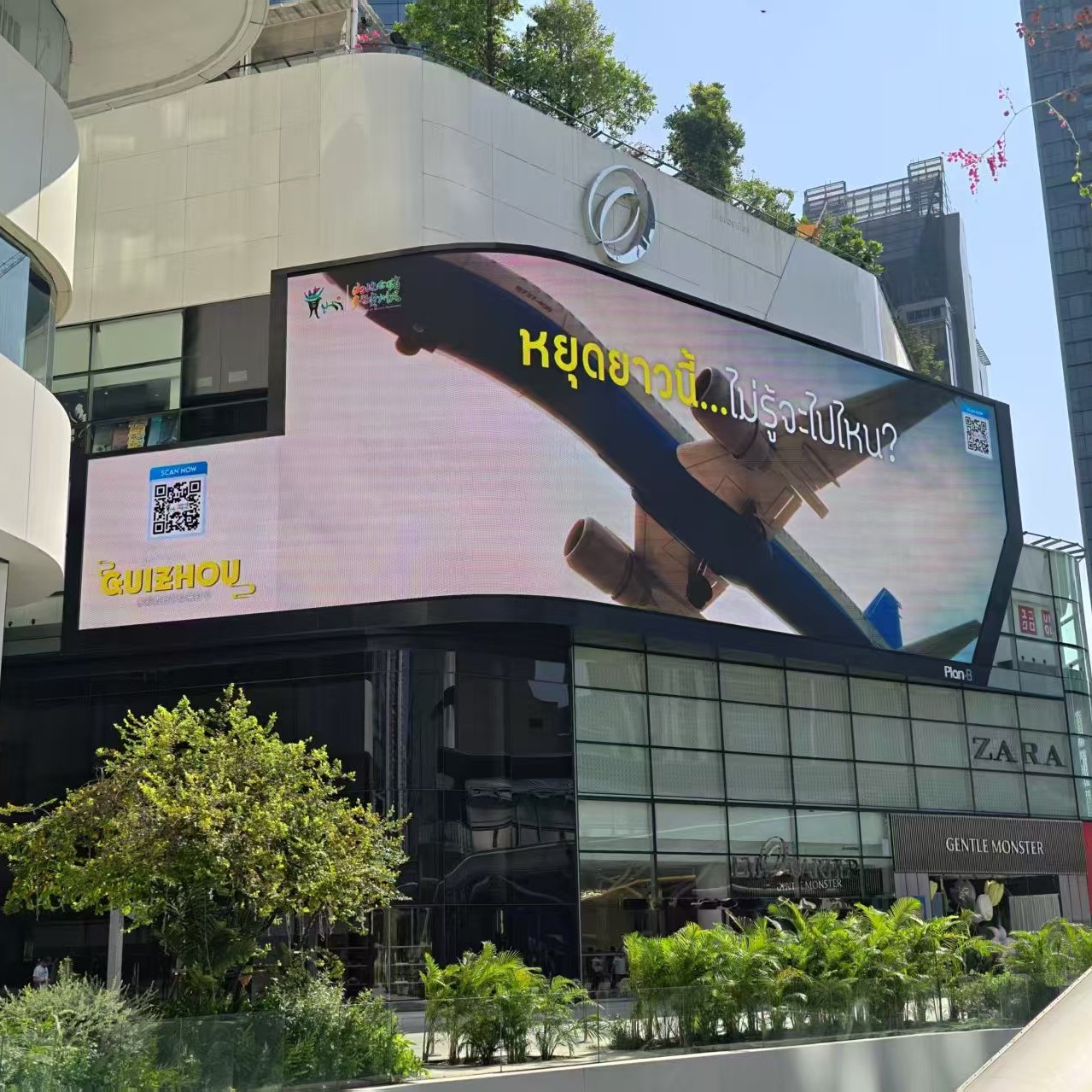

Shopping mall facades and retail storefronts

●— architectural integration, curved mounting possible with the modular design.

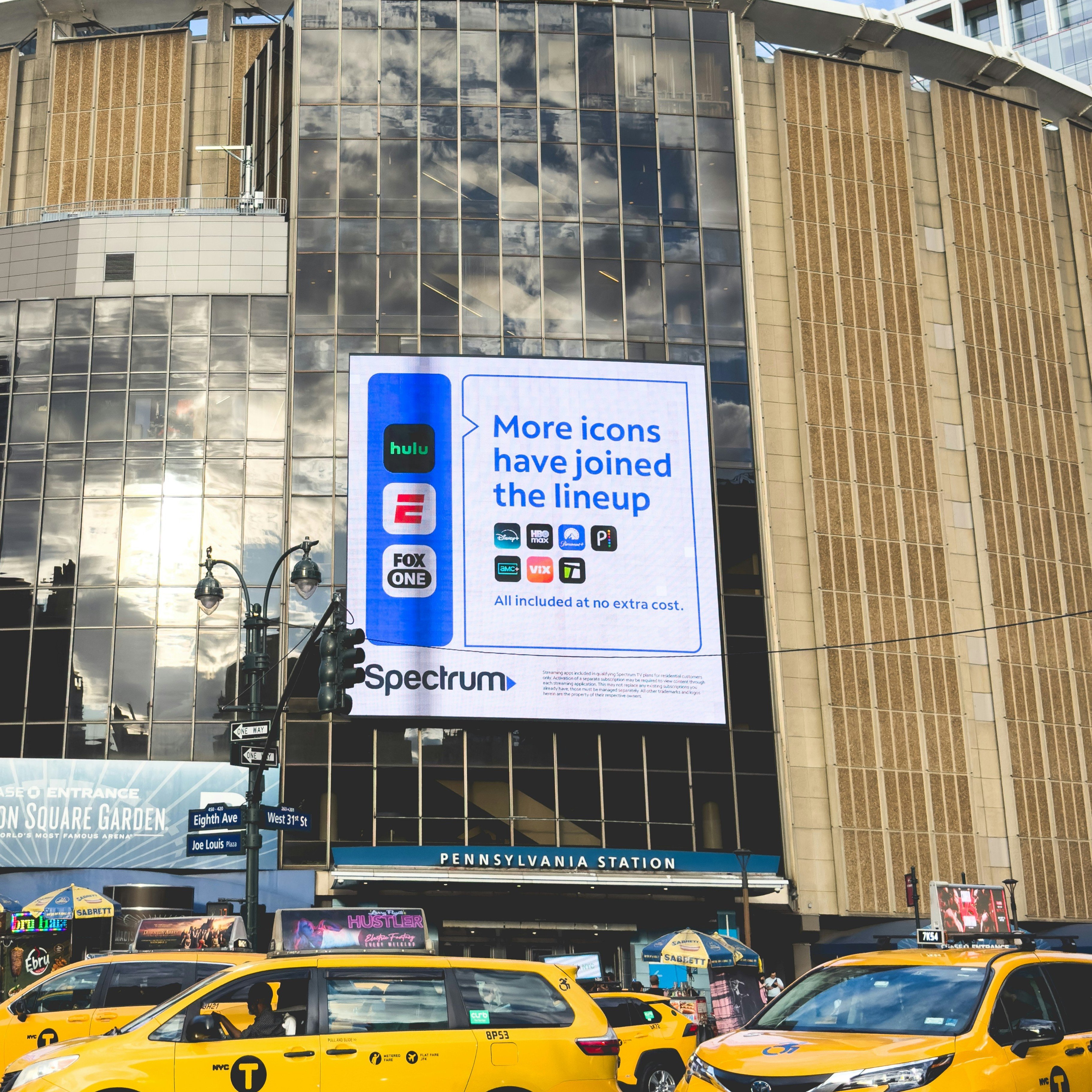

Transportation hubs

●— airports, train stations, bus terminals. Screens that cannot afford to go down.

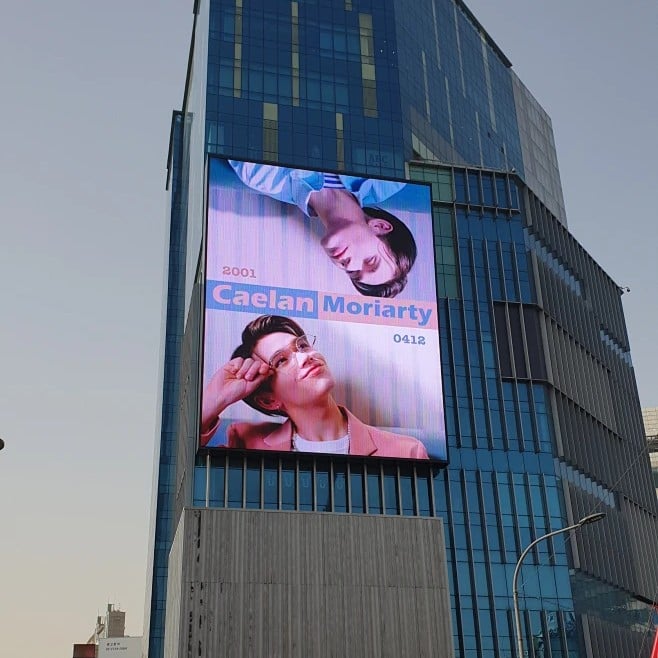

City landmarks and smart city signage

●— public information displays, wayfinding, emergency broadcast integration.

Exhibition halls and trade show booths

●— quick assembly, packs flat, ships in standard flight cases.

Technical Specifications

Parameter	P2	P2.5	P3.076	P4	P5	P6	P8	P10
Pixel Pitch (mm)	2	2.5	3	4	5	6	8	10
LED Standard	SMD1211	SMD1415	SMD1415	SMD1921	SMD1921	SMD2727	SMD3535	SMD3535
Module Dimensions (mm)	160*160	320*160	320*160	320*160	320*160	192*192	256*128	320*160
Module Resolution (L*W)	80*80	128*64	104*52	64*32	64*32	32*32	32*16	32*16
Scan Mode	20	16	13	10	8	8	4	2
Minimum Viewing Distance (m)	2	2.5	3	4	5	6	8	10
Brightness (CD/㎡)	≥4000	≥4000	≥4000	≥5000	≥5500	≥5500	≥5500	≥5500
Cabinet Size (L*W) (mm)	960*960	960*960	960*960	960*960	960*960	960*960	1024*768	960*960
Cabinet Material	Iron	Iron	Iron	Iron	Iron	Iron	Iron	Iron
Cabinet Weight	30kg/㎡	30kg/㎡	30kg/㎡	30kg/㎡	30kg/㎡	30kg/㎡	30kg/㎡	30kg/㎡
Max Power Consumption	1000w/㎡	1000w/㎡	1000w/㎡	1000w/㎡	1000w/㎡	1000w/㎡	900w/㎡	800w/㎡
Average Power Consumption	350w/㎡	350w/㎡	350w/㎡	350w/㎡	350w/㎡	350w/㎡	300w/㎡	240w/㎡
Refresh Rate (Hz)	1920HZ，3840HZ	1920HZ，3840HZ	1920HZ，3840HZ	1920HZ，3840HZ	1920HZ，3840HZ	1920HZ，3840HZ	1920HZ，3840HZ	1920HZ，3840HZ
Protection Level	≥IP65	≥IP65	≥IP65	≥IP65	≥IP65	≥IP65	≥IP65	≥IP65
View Angle	120°	120°	120°	120°	120°	120°	120°	120°
Grey Level	≥4096 level	≥4096 level	≥4096 level	≥4096 level	≥4096 level	≥4096 level	≥4096 level	≥4096 level
Life Span	100000 h	100000 h	100000 h	100000 h	100000 h	100000 h	100000 h	100000 h
Working Voltage	AC220V/(110V)±15%,47~63HZ	AC220V/(110V)±15%,47~63HZ	AC220V/(110V)±15%,47~63HZ	AC220V/(110V)±15%,47~63HZ	AC220V/(110V)±15%,47~63HZ	AC220V/(110V)±15%,47~63HZ	AC220V/(110V)±15%,47~63HZ	AC220V/(110V)±15%,47~63HZ
Signal Transfer	LAN Cable	LAN Cable	LAN Cable	LAN Cable	LAN Cable	LAN Cable	LAN Cable	LAN Cable
Control System	Computer Control System	Computer Control System	Computer Control System	Computer Control System	Computer Control System	Computer Control System	Computer Control System	Computer Control System

Engineered for Continuous Operation

A few design decisions worth calling out, because they separate an outdoor-rated display from an indoor panel put in a box:

●The LED driver ICs are selected for high-temperature stability — thermal drift on cheaper chips visibly shifts color over the course of a hot afternoon.

●Each module's PCB is conformal-coated before assembly, so humidity does not cause creeping corrosion on the solder joints.

●Cabinet seams use EPDM gaskets with compression stops — these do not degrade and shrink the way foam tape does after two summers.

●The power supplies are mounted on thermal pads against the cabinet backplate, turning the enclosure itself into a heatsink.

None of these are especially glamorous. But when the screen is still running at spec three years later and the competitor bid is showing dead pixels, these details are what make the difference.

Factory Capabilities

We manufacture these panels in-house. This means:

●Pixel pitch and cabinet dimensions can be adjusted without waiting on a third-party supplier.

●OEM and ODM projects are standard — your branding, your packaging, your color temperature preference.

●Spare modules and driver ICs are kept in stock, not ordered per project.

●Technical support for installation, calibration, and control system setup is included. We have engineers who will walk your team through it remotely, and field support is available for larger deployments.

We ship globally from our factory in China. Sea freight to major ports, air freight for urgent orders, and we handle the export documentation so you do not need to.

Frequently Asked Questions

What is the difference between P4, P6, and P10 pixel pitch for outdoor use?

Pixel pitch is the distance between LED centers. Smaller pitch (P4) means higher resolution at close viewing distance — suitable for storefronts and pedestrian zones. Larger pitch (P10) is better for highway billboards viewed from 20+ meters away. We help you calculate the right pitch based on minimum viewing distance.

Can these panels form a curved screen?

Yes. The modular cabinet design supports concave and convex curves within a certain radius. The exact minimum radius depends on cabinet size. We can provide the spec once we know your target curve.

How do you handle after-sales service for overseas clients?

We ship spare modules with every order (quantity agreed in advance). If a module fails, your on-site technician can swap it — front-access design means no need to climb behind the structure. Our engineers are available via video call for diagnostics. For large-scale projects, we can send a technician to your site.

How long from order to delivery?

Standard production time is 15–25 working days depending on order size and customization. Sea freight to Europe typically takes 25–35 days, to North America 15–25 days. Air freight is available and takes 5–10 days.

Can I get a sample panel before placing a bulk order?

Yes. We recommend ordering one or two sample cabinets to verify brightness, color uniformity, and build quality before committing to a full wall.

Request a Quote

Tell us your screen size, viewing distance, and installation environment. We will recommend the right pixel pitch, cabinet type, and mounting method — with a detailed quotation including freight options.
